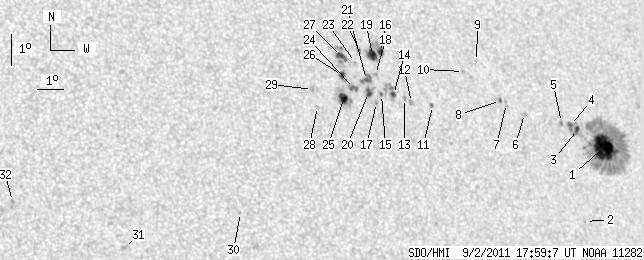

SDO HMI 2011-09-02 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.77 | 320.54 | 49.42 | 206.00 | 24.17 | 300.51 | 36.93 | 300.25 | 0.6351 | -10.3 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.63 | 189.61 | 21.73 | 126.39 | 23.12 | 303.99 | 40.41 | 296.85 | 0.6706 | -1091.9 | -260.0 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 20.90 | 302.48 | 38.90 | 294.12 | 0.6451 | -594.0 | -444.3 | |
| 2.32 | -1.00 | 1.53 | -1.00 | 23.77 | 303.10 | 39.53 | 298.12 | 0.6627 | -780.2 | 999999 | |
| 1.97 | -1.00 | 1.29 | -1.00 | 23.91 | 302.86 | 39.28 | 298.44 | 0.6605 | -816.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 24.04 | 302.52 | 38.94 | 298.76 | 0.6570 | -890.0 | -811.1 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 24.43 | 301.09 | 37.51 | 299.97 | 0.6423 | -707.0 | -551.2 | |
| 0.00 | 2.50 | 0.00 | 1.60 | 24.80 | 300.46 | 36.89 | 300.81 | 0.6367 | -783.0 | -540.0 | |
| 1.43 | 1.52 | 0.91 | 0.97 | 24.91 | 300.25 | 36.68 | 301.08 | 0.6348 | -707.1 | -457.0 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 26.20 | 299.71 | 36.13 | 303.27 | 0.6351 | -569.0 | -426.2 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 25.92 | 299.07 | 35.49 | 303.21 | 0.6264 | -836.0 | -632.7 | |
| 1.25 | 1.52 | 0.78 | 0.94 | 24.94 | 297.48 | 33.90 | 302.64 | 0.6028 | 687.6 | 589.3 | |
| 0.00 | 2.95 | 0.00 | 1.81 | 25.09 | 296.68 | 33.11 | 303.35 | 0.5944 | 751.0 | 462.9 | |
| 0.00 | 1.79 | 0.00 | 1.10 | 25.23 | 296.45 | 32.87 | 303.71 | 0.5924 | 617.0 | 471.6 | |
| 2.59 | 13.77 | 1.59 | 8.41 | 25.38 | 296.06 | 32.48 | 304.20 | 0.5888 | 817.4 | 577.8 | |
| 0.80 | -14.00 | 0.49 | -14.00 | 25.41 | 295.59 | 32.01 | 304.55 | 0.5835 | 703.2 | 999999 | |
| 3.40 | 22.71 | 2.09 | 13.95 | 26.75 | 295.96 | 32.38 | 306.34 | 0.5960 | 537.5 | 237.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 25.17 | 295.32 | 31.74 | 304.35 | 0.5790 | 743.0 | 567.8 | |
| 0.00 | 1.43 | 0.00 | 0.87 | 26.06 | 295.55 | 31.97 | 305.58 | 0.5870 | 557.0 | 487.2 | |
| 7.51 | -16.00 | 4.61 | -16.00 | 26.67 | 295.62 | 32.04 | 306.46 | 0.5917 | 852.6 | 999999 | |
| 4.02 | 6.88 | 2.44 | 4.18 | 25.51 | 295.10 | 31.53 | 305.02 | 0.5785 | 863.1 | 737.4 | |
| 0.00 | 7.51 | 0.00 | 4.56 | 25.92 | 295.15 | 31.57 | 305.64 | 0.5816 | 1001.0 | 765.1 | |
| 0.45 | 2.86 | 0.27 | 1.75 | 26.86 | 295.16 | 31.58 | 307.07 | 0.5877 | 716.6 | 498.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 26.49 | 294.88 | 31.31 | 306.70 | 0.5822 | 742.0 | 619.6 | |
| 3.84 | 6.26 | 2.32 | 3.78 | 25.67 | 294.60 | 31.02 | 305.62 | 0.5737 | 848.9 | 765.3 | |
| 6.44 | 22.97 | 3.86 | 13.78 | 25.38 | 294.09 | 30.51 | 305.53 | 0.5658 | 1141.1 | 490.4 | |
| 3.49 | 5.72 | 2.10 | 3.45 | 26.11 | 294.26 | 30.68 | 306.55 | 0.5726 | 921.6 | 793.9 | |
| 5.63 | 15.91 | 3.41 | 9.64 | 26.71 | 294.40 | 30.82 | 307.39 | 0.5782 | 790.9 | 570.0 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 25.18 | 293.03 | 29.45 | 306.00 | 0.5522 | 807.0 | 621.1 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 25.73 | 292.99 | 29.41 | 306.92 | 0.5554 | 842.0 | 715.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 22.02 | 289.43 | 25.85 | 303.48 | 0.4866 | 675.0 | 478.3 | |
| 0.00 | 2.59 | 0.00 | 1.42 | 21.13 | 285.15 | 21.57 | 305.96 | 0.4255 | 846.0 | 670.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 22.72 | 281.50 | 17.92 | 313.89 | 0.3956 | 747.0 | 669.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
