SDO HMI 2011-09-02 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.42 | 317.11 | 34.26 | 177.00 | -19.60 | 257.80 | -5.23 | 169.18 | 0.4610 | -2.5 | 9.3 | |
|
previous
or next observation for the same group /

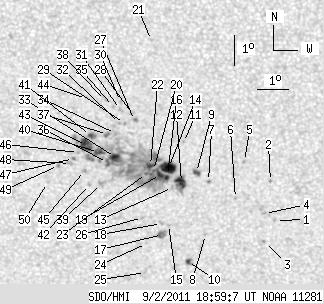

back to the solar disc SDO HMI 2011-09-02 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.48 | 262.31 | -0.72 | 178.61 | 0.4821 | 714.0 | 595.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.14 | 262.15 | -0.87 | 178.22 | 0.4615 | 929.0 | 678.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.21 | 261.94 | -1.08 | 177.96 | 0.4934 | 683.0 | 532.1 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -21.24 | 261.95 | -1.07 | 177.90 | 0.4786 | 1115.0 | 788.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.47 | 261.32 | -1.70 | 176.43 | 0.4516 | 830.0 | 646.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.73 | 261.02 | -2.01 | 176.00 | 0.4715 | 752.0 | 603.0 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -20.15 | 260.15 | -2.87 | 174.16 | 0.4637 | 874.0 | 755.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.98 | 260.02 | -3.00 | 174.31 | 0.4918 | -516.0 | -403.2 | |
| 3.13 | 3.58 | 1.74 | 1.99 | -19.85 | 259.77 | -3.25 | 173.31 | 0.4597 | 972.8 | 787.0 | |
| 1.97 | 4.11 | 1.13 | 2.36 | -22.92 | 259.41 | -3.62 | 173.39 | 0.5071 | -749.3 | -630.7 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.84 | 259.38 | -3.65 | 172.19 | 0.4448 | 768.0 | 541.9 | |
| 6.79 | 15.91 | 3.80 | 8.90 | -20.19 | 259.28 | -3.74 | 172.41 | 0.4659 | 976.2 | 566.4 | |
| 0.00 | 2.32 | 0.00 | 1.30 | -20.37 | 258.99 | -4.04 | 171.88 | 0.4692 | 563.0 | 408.0 | |
| 13.41 | 234.38 | 7.47 | 130.67 | -19.69 | 258.87 | -4.15 | 171.43 | 0.4590 | 1179.9 | 25.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.64 | 258.82 | -4.20 | 171.96 | 0.4889 | 648.0 | 509.1 | |
| 0.63 | -14.00 | 0.35 | -14.00 | -19.96 | 258.83 | -4.19 | 171.44 | 0.4633 | 863.4 | 999999 | |
| 0.00 | 6.17 | 0.00 | 3.51 | -21.99 | 258.61 | -4.41 | 171.68 | 0.4946 | 988.0 | 775.8 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -21.61 | 258.59 | -4.43 | 171.52 | 0.4889 | 785.0 | 686.1 | |
| 3.04 | -14.00 | 1.70 | -14.00 | -19.93 | 258.61 | -4.41 | 170.98 | 0.4633 | 981.5 | 999999 | |
| 1.16 | -14.00 | 0.65 | -14.00 | -19.79 | 258.39 | -4.64 | 170.48 | 0.4618 | 756.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -15.46 | 258.44 | -4.59 | 168.68 | 0.3943 | -752.0 | -609.4 | |
| 3.22 | -14.00 | 1.79 | -14.00 | -19.63 | 258.30 | -4.73 | 170.23 | 0.4595 | 924.2 | 999999 | |
| 0.54 | -14.00 | 0.30 | -14.00 | -19.90 | 258.16 | -4.86 | 170.06 | 0.4640 | 534.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.31 | 258.08 | -4.94 | 170.80 | 0.5006 | 814.0 | 603.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -23.32 | 258.01 | -5.01 | 171.01 | 0.5159 | 696.0 | 528.5 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -21.41 | 257.98 | -5.04 | 170.29 | 0.4874 | 679.0 | 630.5 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.11 | 257.83 | -5.20 | 168.61 | 0.4376 | -838.0 | -750.3 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -17.88 | 257.77 | -5.25 | 168.38 | 0.4342 | -829.0 | -697.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.22 | 257.51 | -5.52 | 167.97 | 0.4402 | -748.0 | -655.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.49 | 257.40 | -5.62 | 167.37 | 0.4293 | -887.0 | -712.0 | |
| 0.00 | 2.41 | 0.00 | 1.33 | -17.75 | 257.39 | -5.63 | 167.50 | 0.4334 | -965.0 | -764.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.22 | 257.35 | -5.68 | 167.64 | 0.4408 | -850.0 | -701.2 | |
| 6.26 | -14.00 | 3.49 | -14.00 | -19.37 | 257.18 | -5.85 | 167.86 | 0.4589 | -788.4 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.58 | -18.56 | 257.21 | -5.82 | 167.52 | 0.4464 | -773.0 | -483.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.66 | 257.17 | -5.85 | 166.97 | 0.4327 | -831.0 | -698.8 | |
| 2.32 | -14.00 | 1.30 | -14.00 | -19.54 | 256.91 | -6.11 | 167.42 | 0.4624 | -658.5 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.48 | -18.60 | 256.95 | -6.08 | 167.00 | 0.4479 | -1027.0 | -910.9 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.46 | 256.92 | -6.10 | 166.33 | 0.4306 | -882.0 | -728.9 | |
| 0.00 | 3.84 | 0.00 | 2.16 | -20.26 | 256.69 | -6.33 | 167.33 | 0.4739 | -822.0 | -612.2 | |
| 5.36 | -14.00 | 2.99 | -14.00 | -19.21 | 256.64 | -6.39 | 166.69 | 0.4583 | -1027.9 | 999999 | |
| 2.15 | -14.00 | 1.19 | -14.00 | -18.64 | 256.40 | -6.62 | 165.90 | 0.4505 | -1088.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -20.30 | 256.30 | -6.72 | 166.60 | 0.4759 | -784.0 | -645.7 | |
| 11.44 | -14.00 | 6.36 | -14.00 | -18.98 | 256.26 | -6.77 | 165.81 | 0.4562 | -1082.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.40 | 256.32 | -6.70 | 165.00 | 0.4321 | -752.0 | -656.9 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -19.82 | 256.16 | -6.87 | 166.08 | 0.4693 | -698.0 | -574.7 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.22 | 255.99 | -7.03 | 165.41 | 0.4608 | -583.0 | -495.3 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.42 | 255.82 | -7.20 | 165.19 | 0.4646 | -812.0 | -692.5 | |
| 0.00 | 2.77 | 0.00 | 1.55 | -19.59 | 255.71 | -7.31 | 165.09 | 0.4675 | -573.0 | -511.0 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -19.67 | 255.32 | -7.70 | 164.37 | 0.4702 | -685.0 | -549.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -20.25 | 254.94 | -8.09 | 163.99 | 0.4805 | -593.0 | -517.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
