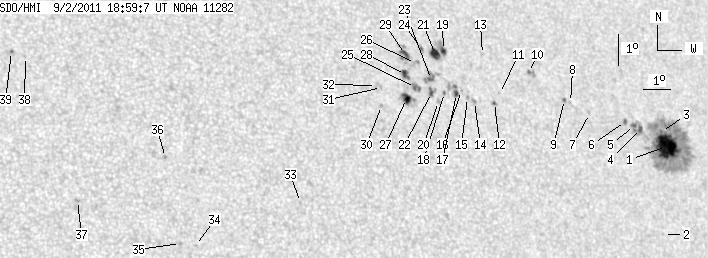

SDO HMI 2011-09-02 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.24 | 318.18 | 52.77 | 206.38 | 24.10 | 300.69 | 37.67 | 299.84 | 0.6432 | 10.2 | -43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.31 | 197.28 | 23.70 | 132.50 | 23.11 | 304.00 | 40.97 | 296.63 | 0.6769 | -1071.8 | -259.0 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 20.41 | 302.94 | 39.92 | 293.04 | 0.6559 | -602.0 | -470.4 | |
| 0.89 | -1.00 | 0.60 | -1.00 | 23.60 | 303.96 | 40.94 | 297.33 | 0.6782 | -509.7 | 999999 | |
| 2.77 | -1.00 | 1.84 | -1.00 | 23.76 | 303.11 | 40.08 | 297.88 | 0.6690 | -818.1 | 999999 | |
| 1.88 | -1.00 | 1.24 | -1.00 | 23.87 | 302.89 | 39.87 | 298.13 | 0.6670 | -798.3 | 999999 | |
| 0.63 | 2.32 | 0.41 | 1.53 | 24.02 | 302.56 | 39.53 | 298.49 | 0.6638 | -812.0 | -599.1 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 24.39 | 301.15 | 38.13 | 299.62 | 0.6492 | -600.0 | -522.7 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 24.79 | 300.49 | 37.47 | 300.52 | 0.6434 | -701.0 | -555.2 | |
| 1.07 | 1.79 | 0.69 | 1.15 | 24.90 | 300.28 | 37.26 | 300.78 | 0.6414 | -683.2 | -640.6 | |
| 1.25 | 4.02 | 0.80 | 2.57 | 25.85 | 299.11 | 36.09 | 302.78 | 0.6328 | -730.5 | -737.3 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 25.27 | 297.72 | 34.70 | 302.68 | 0.6138 | 539.0 | 381.8 | |
| 1.07 | 1.61 | 0.67 | 1.00 | 25.00 | 297.43 | 34.41 | 302.44 | 0.6090 | 696.5 | 654.0 | |
| 0.00 | 1.52 | 0.00 | 0.96 | 26.55 | 297.45 | 34.43 | 304.75 | 0.6178 | 567.0 | 437.5 | |
| 0.00 | 2.32 | 0.00 | 1.44 | 25.09 | 296.65 | 33.63 | 303.02 | 0.6004 | 693.0 | 510.0 | |
| 0.00 | 1.52 | 0.00 | 0.94 | 25.23 | 296.41 | 33.39 | 303.39 | 0.5984 | 625.0 | 524.1 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 25.47 | 296.25 | 33.22 | 303.85 | 0.5979 | 500.0 | 417.5 | |
| 2.77 | 8.49 | 1.70 | 5.22 | 25.38 | 296.02 | 33.00 | 303.87 | 0.5948 | 772.5 | 629.9 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 25.45 | 295.56 | 32.54 | 304.25 | 0.5898 | 830.0 | 727.4 | |
| 3.31 | 21.01 | 2.05 | 12.98 | 26.78 | 295.94 | 32.92 | 306.03 | 0.6022 | 563.0 | 225.6 | |
| 0.00 | 1.88 | 0.00 | 1.14 | 25.18 | 295.24 | 32.22 | 304.04 | 0.5845 | 782.0 | 534.0 | |
| 7.87 | -19.00 | 4.85 | -19.00 | 26.67 | 295.58 | 32.56 | 306.11 | 0.5975 | 835.8 | 999999 | |
| 2.77 | 4.92 | 1.69 | 3.00 | 25.48 | 295.05 | 32.03 | 304.64 | 0.5841 | 898.8 | 733.5 | |
| 1.79 | 10.99 | 1.09 | 6.73 | 25.89 | 295.18 | 32.16 | 305.19 | 0.5881 | 843.9 | 627.0 | |
| 0.80 | 2.77 | 0.49 | 1.70 | 26.90 | 295.09 | 32.07 | 306.78 | 0.5934 | 573.9 | 466.3 | |
| 2.32 | 5.90 | 1.41 | 3.58 | 25.67 | 294.48 | 31.46 | 305.33 | 0.5787 | 877.1 | 811.0 | |
| 0.00 | 3.84 | 0.00 | 2.35 | 26.43 | 294.71 | 31.69 | 306.34 | 0.5861 | 636.0 | 621.4 | |
| 5.99 | 10.99 | 3.61 | 6.63 | 25.35 | 294.03 | 31.01 | 305.13 | 0.5714 | 1069.6 | 688.8 | |
| 4.65 | 5.45 | 2.82 | 3.31 | 26.11 | 294.22 | 31.19 | 306.19 | 0.5784 | 921.2 | 728.3 | |
| 5.10 | 9.21 | 3.11 | 5.61 | 26.74 | 294.41 | 31.39 | 307.03 | 0.5847 | 783.5 | 559.2 | |
| 0.00 | 1.43 | 0.00 | 0.85 | 25.19 | 293.02 | 29.99 | 305.60 | 0.5585 | 820.0 | 625.1 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 25.75 | 293.17 | 30.15 | 306.39 | 0.5641 | 748.0 | 579.1 | |
| 0.00 | 2.50 | 0.00 | 1.50 | 25.83 | 293.00 | 29.98 | 306.63 | 0.5626 | 702.0 | 611.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 22.31 | 289.30 | 26.27 | 303.65 | 0.4939 | 663.0 | 498.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 21.16 | 285.34 | 22.31 | 305.21 | 0.4352 | 572.0 | 466.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 21.24 | 284.82 | 21.80 | 305.94 | 0.4293 | 802.0 | 548.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 23.96 | 284.75 | 21.72 | 311.22 | 0.4515 | 766.0 | 647.8 | |
| 0.00 | 2.15 | 0.00 | 1.16 | 22.73 | 281.47 | 18.44 | 313.16 | 0.4017 | 803.0 | 647.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 27.36 | 280.34 | 17.32 | 322.91 | 0.4401 | 714.0 | 491.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 27.54 | 279.87 | 16.85 | 323.89 | 0.4378 | 908.0 | 825.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
