SDO HMI 2011-09-03 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.86 | 58.58 | 8.80 | 34.58 | 13.62 | 291.51 | 32.89 | 284.00 | 0.5462 | -474.9 | -430.7 | |
|
previous
or next observation for the same group /

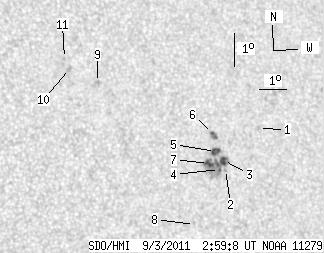

back to the solar disc SDO HMI 2011-09-03 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 1.08 | 14.10 | 293.63 | 35.01 | 284.30 | 0.5764 | -711.0 | -541.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 12.95 | 292.19 | 33.58 | 282.57 | 0.5544 | -603.0 | -465.5 | |
| 3.94 | 44.72 | 2.34 | 26.48 | 13.23 | 292.16 | 33.55 | 283.07 | 0.5544 | -845.4 | -591.6 | |
| 0.72 | -3.00 | 0.42 | -3.00 | 12.96 | 291.97 | 33.36 | 282.64 | 0.5513 | -714.9 | 999999 | |
| 5.28 | -3.00 | 3.13 | -3.00 | 13.52 | 291.91 | 33.29 | 283.65 | 0.5514 | -873.5 | 999999 | |
| 0.63 | 4.38 | 0.37 | 2.60 | 14.07 | 291.89 | 33.27 | 284.66 | 0.5522 | -749.0 | -750.4 | |
| 4.29 | -3.00 | 2.54 | -3.00 | 13.17 | 291.59 | 32.98 | 283.10 | 0.5463 | -999.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 11.36 | 290.83 | 32.21 | 279.89 | 0.5326 | 575.0 | 505.9 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 15.89 | 287.96 | 29.34 | 289.41 | 0.5017 | 758.0 | 635.1 | |
| 0.00 | 2.50 | 0.00 | 1.42 | 16.37 | 287.03 | 28.41 | 290.80 | 0.4904 | 648.0 | 641.6 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 16.69 | 286.90 | 28.29 | 291.49 | 0.4898 | 646.0 | 480.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
