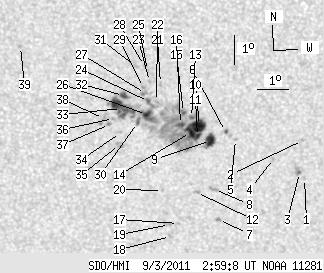

SDO HMI 2011-09-03 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.56 | 303.01 | 39.14 | 168.34 | -19.50 | 257.73 | -0.89 | 178.08 | 0.4523 | 12.9 | 49.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.81 | -21.45 | 262.28 | 3.67 | 187.07 | 0.4853 | 839.0 | 663.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.15 | 262.18 | 3.57 | 187.25 | 0.4651 | 785.0 | 479.8 | |
| 1.07 | 4.11 | 0.61 | 2.32 | -21.24 | 262.11 | 3.50 | 186.81 | 0.4818 | 759.9 | 764.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.75 | 261.26 | 2.64 | 185.26 | 0.4730 | 889.0 | 711.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -20.10 | 260.02 | 1.41 | 182.88 | 0.4615 | 632.0 | 494.1 | |
| 0.98 | 4.11 | 0.55 | 2.29 | -19.83 | 259.70 | 1.08 | 182.24 | 0.4570 | 847.6 | 619.1 | |
| 0.00 | 2.59 | 0.00 | 1.49 | -22.86 | 259.49 | 0.88 | 181.61 | 0.5035 | -1017.0 | -729.8 | |
| 0.00 | 3.22 | 0.00 | 1.82 | -21.81 | 259.36 | 0.74 | 181.42 | 0.4876 | 736.0 | 579.4 | |
| 7.96 | 12.70 | 4.44 | 7.09 | -20.13 | 259.22 | 0.60 | 181.23 | 0.4615 | 949.0 | 649.4 | |
| 12.88 | 236.58 | 7.15 | 131.23 | -19.62 | 258.86 | 0.25 | 180.52 | 0.4535 | 1170.9 | 82.3 | |
| 3.04 | -10.00 | 1.69 | -10.00 | -19.99 | 258.80 | 0.18 | 180.38 | 0.4593 | 862.4 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.32 | -21.92 | 258.77 | 0.15 | 180.29 | 0.4890 | 884.0 | 592.7 | |
| 1.61 | -10.00 | 0.89 | -10.00 | -19.35 | 258.61 | -0.01 | 179.98 | 0.4492 | 965.2 | 999999 | |
| 6.17 | -10.00 | 3.43 | -10.00 | -19.86 | 258.57 | -0.04 | 179.92 | 0.4572 | 985.6 | 999999 | |
| 1.61 | -10.00 | 0.89 | -10.00 | -19.18 | 258.35 | -0.26 | 179.44 | 0.4466 | 947.8 | 999999 | |
| 3.13 | -10.00 | 1.74 | -10.00 | -19.59 | 258.25 | -0.36 | 179.24 | 0.4530 | 874.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -23.00 | 258.18 | -0.44 | 179.20 | 0.5055 | 817.0 | 633.9 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -23.46 | 257.91 | -0.70 | 178.74 | 0.5124 | 543.0 | 505.4 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -23.03 | 257.88 | -0.73 | 178.66 | 0.5061 | 838.0 | 692.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.85 | 257.66 | -0.95 | 178.18 | 0.4882 | 775.0 | 516.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.20 | 257.62 | -1.00 | 177.80 | 0.4315 | -726.0 | -556.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.81 | 257.49 | -1.13 | 177.57 | 0.4412 | 96.0 | 89.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.14 | 257.27 | -1.35 | 177.02 | 0.4307 | -905.0 | -755.8 | |
| 2.06 | -10.00 | 1.13 | -10.00 | -18.81 | 257.23 | -1.38 | 177.02 | 0.4414 | -857.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -17.77 | 257.21 | -1.41 | 176.83 | 0.4250 | -786.0 | -648.6 | |
| 3.04 | -10.00 | 1.68 | -10.00 | -19.25 | 257.16 | -1.45 | 176.93 | 0.4483 | -893.7 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.07 | -18.54 | 257.14 | -1.48 | 176.78 | 0.4372 | -809.0 | -717.3 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.60 | 257.11 | -1.50 | 176.60 | 0.4224 | -996.0 | -801.1 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -18.34 | 257.08 | -1.54 | 176.62 | 0.4341 | -915.0 | -743.0 | |
| 1.25 | -10.00 | 0.70 | -10.00 | -19.52 | 256.87 | -1.74 | 176.36 | 0.4528 | -500.2 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.32 | -17.64 | 256.83 | -1.79 | 175.96 | 0.4233 | -694.0 | -614.1 | |
| 4.11 | -10.00 | 2.27 | -10.00 | -18.61 | 256.44 | -2.18 | 175.27 | 0.4391 | -1019.2 | 999999 | |
| 21.65 | -10.00 | 11.97 | -10.00 | -19.05 | 256.37 | -2.25 | 175.21 | 0.4460 | -1006.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.86 | 256.32 | -2.29 | 175.28 | 0.4587 | -897.0 | -687.1 | |
| 0.00 | 4.03 | 0.00 | 2.25 | -20.27 | 256.28 | -2.33 | 175.28 | 0.4651 | -885.0 | -686.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.39 | 256.10 | -2.51 | 174.73 | 0.4517 | -679.0 | -625.5 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -19.59 | 255.97 | -2.64 | 174.50 | 0.4550 | -657.0 | -510.9 | |
| 0.00 | 4.47 | 0.00 | 2.48 | -19.39 | 255.78 | -2.83 | 174.06 | 0.4522 | -643.0 | -631.0 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.00 | 253.19 | -5.43 | 167.56 | 0.4215 | -800.0 | -657.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
