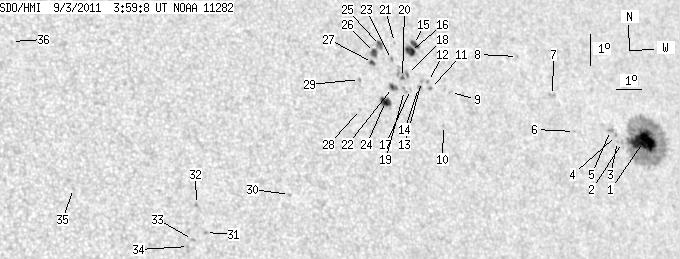

SDO HMI 2011-09-03 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.09 | 237.03 | 42.42 | 165.65 | 23.82 | 301.20 | 43.13 | 297.20 | 0.7031 | 50.6 | -100.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.79 | 152.88 | 21.69 | 111.49 | 23.02 | 304.30 | 46.23 | 294.85 | 0.7348 | -947.5 | -260.4 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 23.07 | 303.33 | 45.26 | 295.18 | 0.7245 | -832.0 | -709.9 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 23.12 | 303.12 | 45.05 | 295.31 | 0.7223 | -688.0 | -587.7 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 23.31 | 303.15 | 45.09 | 295.56 | 0.7232 | -837.0 | -774.3 | |
| 0.00 | 2.33 | 0.00 | 1.66 | 23.49 | 302.95 | 44.88 | 295.86 | 0.7215 | -782.0 | -668.3 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 23.59 | 301.33 | 43.27 | 296.49 | 0.7041 | -597.0 | -524.1 | |
| 0.00 | 3.22 | 0.00 | 2.23 | 24.79 | 300.84 | 42.77 | 298.31 | 0.7026 | -778.0 | -587.8 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 26.13 | 299.83 | 41.76 | 300.53 | 0.6966 | -602.0 | -498.4 | |
| 0.00 | 1.52 | 0.00 | 1.00 | 25.22 | 296.51 | 38.44 | 300.67 | 0.6563 | 668.0 | 526.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 24.21 | 295.85 | 37.78 | 299.50 | 0.6443 | 604.0 | 528.7 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 25.41 | 295.73 | 37.66 | 301.31 | 0.6483 | 757.0 | 696.4 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 25.64 | 295.73 | 37.66 | 301.64 | 0.6493 | 620.0 | 569.4 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 25.66 | 295.44 | 37.37 | 301.81 | 0.6461 | 711.0 | 567.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 25.48 | 295.25 | 37.18 | 301.65 | 0.6431 | 617.0 | 602.6 | |
| 3.94 | 13.95 | 2.57 | 9.09 | 26.85 | 295.59 | 37.52 | 303.45 | 0.6536 | 429.9 | 473.3 | |
| 6.53 | -15.00 | 4.25 | -15.00 | 26.64 | 295.34 | 37.27 | 303.28 | 0.6498 | 771.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 25.44 | 294.90 | 36.83 | 301.77 | 0.6390 | 648.0 | 572.1 | |
| 1.34 | 8.95 | 0.86 | 5.75 | 25.92 | 294.94 | 36.88 | 302.45 | 0.6418 | 625.4 | 661.1 | |
| 0.00 | 2.50 | 0.00 | 1.60 | 25.42 | 294.64 | 36.57 | 301.88 | 0.6360 | 787.0 | 713.6 | |
| 1.16 | -18.00 | 0.75 | -18.00 | 25.84 | 294.70 | 36.64 | 302.45 | 0.6387 | 907.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 26.97 | 294.79 | 36.72 | 304.04 | 0.6454 | 611.0 | 497.5 | |
| 2.24 | 4.38 | 1.43 | 2.80 | 25.55 | 294.18 | 36.12 | 302.30 | 0.6314 | 881.2 | 769.4 | |
| 0.00 | 1.79 | 0.00 | 1.15 | 26.44 | 294.46 | 36.39 | 303.45 | 0.6390 | 674.0 | 566.5 | |
| 7.16 | 9.93 | 4.53 | 6.28 | 25.13 | 293.75 | 35.68 | 301.91 | 0.6243 | 895.6 | 508.5 | |
| 3.40 | 10.38 | 2.18 | 6.64 | 26.91 | 294.17 | 36.11 | 304.30 | 0.6383 | 661.8 | 618.6 | |
| 4.56 | -25.00 | 2.91 | -25.00 | 26.71 | 293.85 | 35.78 | 304.18 | 0.6336 | 849.6 | 999999 | |
| 1.97 | 3.04 | 1.25 | 1.93 | 26.40 | 293.65 | 35.58 | 303.84 | 0.6298 | 810.3 | 659.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 24.95 | 292.67 | 34.60 | 302.23 | 0.6109 | 681.0 | 491.5 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 25.90 | 292.94 | 34.87 | 303.50 | 0.6190 | 763.0 | 621.1 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 22.47 | 289.16 | 31.10 | 300.37 | 0.5553 | 752.0 | 658.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 21.47 | 285.79 | 27.72 | 300.95 | 0.5067 | 698.0 | 667.1 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 22.36 | 285.64 | 27.57 | 302.65 | 0.5105 | 757.0 | 613.6 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 21.28 | 285.27 | 27.20 | 300.99 | 0.4989 | 759.0 | 634.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 21.07 | 285.08 | 27.02 | 300.75 | 0.4952 | 769.0 | 587.9 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 23.09 | 281.32 | 23.25 | 307.91 | 0.4621 | 720.0 | 425.1 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 27.86 | 280.01 | 21.94 | 317.49 | 0.4909 | 681.0 | 567.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
