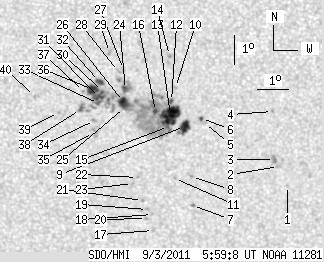

SDO HMI 2011-09-03 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.21 | 284.84 | 40.05 | 158.34 | -19.60 | 257.87 | 0.90 | 181.83 | 0.4538 | 206.6 | -7.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.17 | 262.59 | 5.62 | 190.48 | 0.5006 | 680.0 | 551.2 | |
| 0.00 | 2.51 | 0.00 | 1.42 | -21.51 | 262.27 | 5.30 | 190.15 | 0.4898 | 813.0 | 539.6 | |
| 0.00 | 3.94 | 0.00 | 2.23 | -21.27 | 262.13 | 5.16 | 189.98 | 0.4858 | 964.0 | 823.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.62 | 262.01 | 5.04 | 190.40 | 0.4606 | 889.0 | 682.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.01 | 259.83 | 2.86 | 185.85 | 0.4618 | 608.0 | 552.7 | |
| 1.34 | 1.70 | 0.75 | 0.95 | -19.84 | 259.73 | 2.76 | 185.69 | 0.4590 | 876.3 | 783.5 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -22.84 | 259.49 | 2.52 | 184.63 | 0.5045 | -821.0 | -633.9 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.83 | 259.44 | 2.47 | 184.71 | 0.4891 | 723.0 | 549.7 | |
| 8.95 | 12.88 | 4.99 | 7.19 | -20.11 | 259.19 | 2.22 | 184.52 | 0.4624 | 927.5 | 595.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.79 | 258.88 | 1.91 | 184.12 | 0.4414 | 762.0 | 593.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.90 | 258.89 | 1.92 | 183.65 | 0.4895 | 837.0 | 628.5 | |
| 1.70 | 221.87 | 0.94 | 123.08 | -19.26 | 258.76 | 1.79 | 183.78 | 0.4487 | 1058.8 | -9.6 | |
| 26.12 | -12.00 | 14.53 | -12.00 | -19.73 | 258.73 | 1.76 | 183.65 | 0.4561 | 1085.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -17.71 | 258.68 | 1.71 | 183.85 | 0.4243 | -685.0 | -601.9 | |
| 0.98 | -12.00 | 0.55 | -12.00 | -20.11 | 258.67 | 1.70 | 183.47 | 0.4618 | 683.5 | 999999 | |
| 2.33 | -12.00 | 1.29 | -12.00 | -19.60 | 258.25 | 1.28 | 182.66 | 0.4535 | 830.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -23.71 | 258.22 | 1.25 | 182.22 | 0.5165 | 584.0 | 433.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -23.15 | 258.18 | 1.21 | 182.20 | 0.5080 | 750.0 | 594.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -22.97 | 258.02 | 1.04 | 181.91 | 0.5052 | 916.0 | 691.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -23.29 | 257.99 | 1.01 | 181.83 | 0.5100 | 722.0 | 565.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.66 | 257.85 | 0.88 | 181.63 | 0.5004 | 776.0 | 711.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.86 | 257.68 | 0.71 | 181.35 | 0.4881 | 840.0 | 690.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -22.07 | 257.52 | 0.55 | 181.04 | 0.4913 | 790.0 | 645.9 | |
| 2.33 | -12.00 | 1.28 | -12.00 | -18.85 | 257.28 | 0.31 | 180.67 | 0.4414 | -705.4 | 999999 | |
| 2.06 | -12.00 | 1.14 | -12.00 | -19.46 | 257.25 | 0.28 | 180.59 | 0.4509 | 152.6 | 999999 | |
| 7.34 | -12.00 | 4.06 | -12.00 | -19.26 | 257.22 | 0.25 | 180.53 | 0.4477 | -637.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.18 | 257.22 | 0.25 | 180.55 | 0.4308 | -851.0 | -691.3 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -18.24 | 257.06 | 0.09 | 180.20 | 0.4318 | -858.0 | -682.9 | |
| 0.00 | 2.51 | 0.00 | 1.37 | -17.61 | 256.77 | -0.20 | 179.55 | 0.4217 | -907.0 | -720.2 | |
| 0.98 | -12.00 | 0.54 | -12.00 | -18.92 | 256.55 | -0.42 | 179.09 | 0.4425 | -933.0 | 999999 | |
| 3.13 | -12.00 | 1.73 | -12.00 | -19.12 | 256.45 | -0.52 | 178.89 | 0.4457 | -1066.4 | 999999 | |
| 3.76 | -12.00 | 2.07 | -12.00 | -18.58 | 256.45 | -0.52 | 178.87 | 0.4372 | -1053.4 | 999999 | |
| 1.70 | -12.00 | 0.94 | -12.00 | -19.32 | 256.42 | -0.55 | 178.83 | 0.4489 | -817.1 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -19.90 | 256.29 | -0.68 | 178.59 | 0.4579 | -909.0 | -610.2 | |
| 0.00 | 5.55 | 0.00 | 3.10 | -20.31 | 256.25 | -0.72 | 178.55 | 0.4643 | -415.0 | -620.1 | |
| 7.52 | -12.00 | 4.15 | -12.00 | -18.85 | 256.23 | -0.74 | 178.40 | 0.4415 | -1085.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.92 | 255.94 | -1.03 | 177.79 | 0.4427 | -726.0 | -563.0 | |
| 1.97 | 6.53 | 1.09 | 3.62 | -19.53 | 255.84 | -1.13 | 177.63 | 0.4523 | -714.2 | -664.4 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.63 | 255.13 | -1.84 | 176.17 | 0.4545 | -891.0 | -699.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.09 | 254.37 | -2.60 | 174.47 | 0.4471 | -759.0 | -595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
