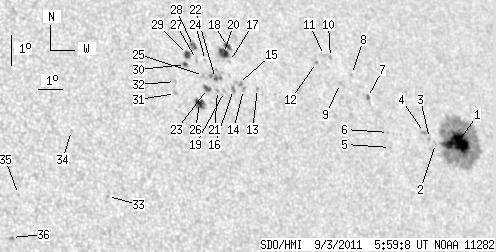

SDO HMI 2011-09-03 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.26 | 240.09 | 40.02 | 171.48 | 23.84 | 301.56 | 44.59 | 296.71 | 0.7192 | -85.4 | -104.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.52 | 155.85 | 21.94 | 115.98 | 23.01 | 304.41 | 47.44 | 294.53 | 0.7476 | -974.1 | -244.6 | |
| 0.00 | 1.43 | 0.00 | 1.04 | 23.07 | 303.38 | 46.40 | 294.87 | 0.7367 | -679.0 | -610.7 | |
| 0.00 | 1.43 | 0.00 | 1.04 | 23.24 | 303.17 | 46.20 | 295.17 | 0.7350 | -838.0 | -702.4 | |
| 0.00 | 2.42 | 0.00 | 1.75 | 23.45 | 303.02 | 46.05 | 295.48 | 0.7339 | -723.0 | -682.8 | |
| 0.00 | 1.16 | 0.00 | 0.82 | 23.12 | 301.28 | 44.31 | 295.52 | 0.7143 | -640.0 | -454.0 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 23.59 | 301.39 | 44.42 | 296.13 | 0.7168 | -651.0 | -531.7 | |
| 0.63 | 1.97 | 0.44 | 1.39 | 24.75 | 300.93 | 43.95 | 297.86 | 0.7153 | -757.3 | -640.7 | |
| 0.00 | 1.07 | 0.00 | 0.76 | 25.53 | 300.53 | 43.56 | 299.05 | 0.7136 | -532.0 | -350.8 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 25.29 | 299.92 | 42.95 | 298.94 | 0.7062 | -594.0 | -581.9 | |
| 0.00 | 1.88 | 0.00 | 1.31 | 26.14 | 299.84 | 42.87 | 300.12 | 0.7084 | -627.0 | -512.2 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 26.22 | 299.60 | 42.63 | 300.32 | 0.7062 | -660.0 | -489.3 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 26.03 | 299.15 | 42.18 | 300.24 | 0.7006 | -711.0 | -603.7 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 25.41 | 296.27 | 39.30 | 300.57 | 0.6667 | 636.0 | 536.4 | |
| 0.00 | 1.97 | 0.00 | 1.29 | 25.43 | 295.67 | 38.70 | 300.86 | 0.6600 | 768.0 | 594.0 | |
| 0.00 | 3.04 | 0.00 | 2.00 | 25.63 | 295.53 | 38.56 | 301.21 | 0.6594 | 597.0 | 523.5 | |
| 0.00 | 2.77 | 0.00 | 1.81 | 25.46 | 295.25 | 38.28 | 301.09 | 0.6555 | 795.0 | 638.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 26.35 | 295.43 | 38.45 | 302.29 | 0.6615 | 461.0 | 373.2 | |
| 2.33 | 13.06 | 1.54 | 8.61 | 26.83 | 295.53 | 38.56 | 302.92 | 0.6649 | 470.3 | 442.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 25.42 | 294.86 | 37.88 | 301.23 | 0.6509 | 603.0 | 526.9 | |
| 6.80 | -18.00 | 4.48 | -18.00 | 26.62 | 295.27 | 38.30 | 302.75 | 0.6611 | 781.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 25.48 | 294.58 | 37.61 | 301.44 | 0.6480 | 832.0 | 693.9 | |
| 1.52 | 10.47 | 0.99 | 6.82 | 25.86 | 294.63 | 37.66 | 301.97 | 0.6504 | 866.6 | 565.4 | |
| 3.22 | 3.49 | 2.08 | 2.25 | 25.57 | 294.19 | 37.22 | 301.77 | 0.6440 | 830.4 | 521.7 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 26.46 | 294.44 | 37.46 | 302.93 | 0.6510 | 700.0 | 556.0 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 25.99 | 294.17 | 37.20 | 302.39 | 0.6459 | 801.0 | 731.9 | |
| 4.47 | 8.68 | 2.87 | 5.56 | 25.15 | 293.70 | 36.73 | 301.40 | 0.6365 | 881.6 | 741.4 | |
| 0.00 | 1.79 | 0.00 | 1.16 | 26.52 | 294.07 | 37.10 | 303.20 | 0.6473 | 723.0 | 580.3 | |
| 3.94 | 4.29 | 2.56 | 2.79 | 26.94 | 294.11 | 37.14 | 303.78 | 0.6498 | 655.5 | 468.8 | |
| 3.67 | 4.65 | 2.37 | 3.01 | 26.70 | 293.76 | 36.79 | 303.62 | 0.6448 | 814.6 | 627.8 | |
| 1.16 | 1.97 | 0.75 | 1.27 | 26.39 | 293.56 | 36.59 | 303.28 | 0.6410 | 876.2 | 745.4 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 25.50 | 292.83 | 35.86 | 302.38 | 0.6282 | 630.0 | 471.6 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 25.88 | 292.96 | 35.99 | 302.86 | 0.6316 | 741.0 | 634.6 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 22.46 | 289.19 | 32.21 | 299.68 | 0.5692 | 731.0 | 609.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 24.61 | 288.37 | 31.40 | 303.68 | 0.5713 | -614.0 | -533.6 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 22.73 | 285.86 | 28.89 | 302.31 | 0.5293 | 595.0 | 508.8 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 21.40 | 285.30 | 28.33 | 300.38 | 0.5142 | 789.0 | 719.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
