SDO HMI 2011-09-03 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.72 | 35.70 | 7.13 | 21.67 | 13.09 | 291.89 | 35.47 | 282.45 | 0.5810 | -561.2 | -519.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

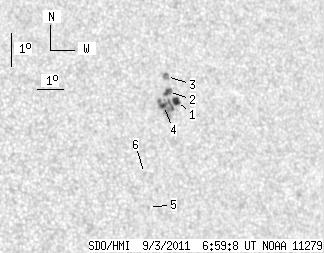

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.65 | 24.25 | 2.84 | 14.73 | 13.19 | 292.20 | 35.78 | 282.58 | 0.5854 | -751.9 | -625.6 | |
| 4.12 | 5.01 | 2.50 | 3.05 | 13.51 | 291.95 | 35.53 | 283.18 | 0.5825 | -850.1 | -836.7 | |
| 0.00 | 3.58 | 0.00 | 2.18 | 13.97 | 291.96 | 35.53 | 283.96 | 0.5833 | -854.0 | -738.0 | |
| 2.95 | -1.00 | 1.79 | -1.00 | 13.10 | 291.69 | 35.27 | 282.52 | 0.5782 | -1016.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 10.06 | 290.69 | 34.27 | 277.30 | 0.5611 | 766.0 | 633.4 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 11.10 | 290.68 | 34.25 | 279.15 | 0.5616 | 483.0 | 367.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
