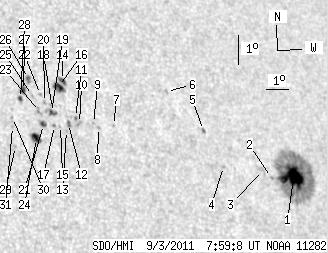

SDO HMI 2011-09-03 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.31 | 223.72 | 37.95 | 163.64 | 23.76 | 301.95 | 46.07 | 296.14 | 0.7348 | -8.8 | -77.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.00 | 151.64 | 21.26 | 115.32 | 22.96 | 304.53 | 48.65 | 294.19 | 0.7601 | -979.5 | -215.8 | |
| 0.00 | 1.25 | 0.00 | 0.93 | 23.05 | 303.48 | 47.61 | 294.56 | 0.7494 | -598.0 | -577.4 | |
| 0.00 | 4.20 | 0.00 | 3.12 | 23.31 | 303.16 | 47.29 | 294.97 | 0.7467 | -636.0 | -525.5 | |
| 0.00 | 1.52 | 0.00 | 1.10 | 23.59 | 301.42 | 45.54 | 295.81 | 0.7289 | -644.0 | -483.5 | |
| 0.36 | 1.97 | 0.26 | 1.42 | 24.78 | 301.02 | 45.14 | 297.52 | 0.7280 | -593.2 | -495.2 | |
| 0.00 | 1.34 | 0.00 | 0.96 | 26.14 | 299.91 | 44.03 | 299.70 | 0.7207 | -611.0 | -535.9 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 25.26 | 297.09 | 41.22 | 299.56 | 0.6873 | 463.0 | 380.1 | |
| 0.00 | 1.43 | 0.00 | 0.96 | 25.25 | 296.42 | 40.55 | 299.81 | 0.6799 | 518.0 | 430.4 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 25.39 | 296.26 | 40.38 | 300.08 | 0.6787 | 498.0 | 395.8 | |
| 0.00 | 2.24 | 0.00 | 1.49 | 25.44 | 295.66 | 39.79 | 300.40 | 0.6722 | 748.0 | 534.5 | |
| 0.00 | 1.43 | 0.00 | 0.96 | 25.64 | 295.57 | 39.69 | 300.72 | 0.6720 | 569.0 | 548.4 | |
| 0.00 | 2.68 | 0.00 | 1.78 | 25.48 | 295.20 | 39.32 | 300.65 | 0.6672 | 782.0 | 635.6 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 25.26 | 295.03 | 39.15 | 300.42 | 0.6644 | 580.0 | 461.1 | |
| 3.49 | 13.42 | 2.34 | 8.97 | 26.85 | 295.49 | 39.62 | 302.45 | 0.6764 | 435.0 | 571.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 25.44 | 294.84 | 38.96 | 300.76 | 0.6630 | 674.0 | 619.8 | |
| 4.56 | -14.00 | 3.05 | -14.00 | 26.67 | 295.24 | 39.37 | 302.32 | 0.6729 | 758.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 25.46 | 294.58 | 38.71 | 300.90 | 0.6603 | 774.0 | 659.3 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 26.00 | 294.71 | 38.83 | 301.61 | 0.6641 | 427.0 | 509.8 | |
| 1.70 | 5.99 | 1.12 | 3.95 | 25.87 | 294.62 | 38.74 | 301.48 | 0.6625 | 833.8 | 691.8 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 26.21 | 294.45 | 38.57 | 302.04 | 0.6621 | 612.0 | 455.3 | |
| 2.86 | 3.40 | 1.87 | 2.22 | 25.52 | 294.14 | 38.26 | 301.20 | 0.6556 | 815.8 | 809.2 | |
| 0.00 | 1.25 | 0.00 | 0.83 | 26.48 | 294.38 | 38.50 | 302.45 | 0.6626 | 614.0 | 460.6 | |
| 0.00 | 3.22 | 0.00 | 2.11 | 25.94 | 294.13 | 38.25 | 301.81 | 0.6574 | 829.0 | 655.1 | |
| 6.62 | 7.60 | 4.30 | 4.94 | 25.10 | 293.68 | 37.81 | 300.81 | 0.6486 | 868.2 | 630.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 26.47 | 294.03 | 38.15 | 302.61 | 0.6588 | 750.0 | 611.8 | |
| 1.52 | 3.04 | 1.00 | 2.00 | 27.02 | 294.08 | 38.20 | 303.36 | 0.6619 | 645.8 | 683.4 | |
| 2.59 | 3.85 | 1.70 | 2.52 | 26.65 | 293.72 | 37.84 | 303.03 | 0.6562 | 809.3 | 743.0 | |
| 1.61 | 2.15 | 1.05 | 1.40 | 26.41 | 293.49 | 37.62 | 302.79 | 0.6525 | 777.4 | 728.3 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 24.92 | 292.73 | 36.86 | 300.99 | 0.6368 | 658.0 | 519.1 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 25.84 | 292.94 | 37.06 | 302.24 | 0.6436 | 921.0 | 699.9 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 25.55 | 292.83 | 36.96 | 301.88 | 0.6410 | 755.0 | 579.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
