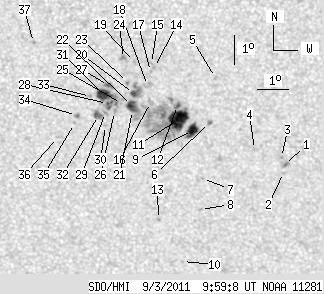

SDO HMI 2011-09-03 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.33 | 249.00 | 37.93 | 138.42 | -19.49 | 258.02 | 3.24 | 186.69 | 0.4546 | 29.7 | 24.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.58 | 0.00 | 2.04 | -21.31 | 262.23 | 7.45 | 194.22 | 0.4935 | 844.0 | 735.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.58 | 262.21 | 7.43 | 194.04 | 0.4975 | 444.0 | 493.5 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -21.07 | 262.12 | 7.34 | 194.15 | 0.4896 | 778.0 | 730.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.78 | 261.22 | 6.44 | 192.62 | 0.4821 | 905.0 | 622.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -18.32 | 259.88 | 5.10 | 191.08 | 0.4405 | 699.0 | 514.7 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -19.83 | 259.73 | 4.95 | 190.13 | 0.4634 | 1034.0 | 818.5 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.75 | 259.57 | 4.79 | 189.10 | 0.4920 | 751.0 | 631.7 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -22.83 | 259.54 | 4.76 | 188.69 | 0.5081 | -559.0 | -426.3 | |
| 9.93 | 12.34 | 5.55 | 6.90 | -20.10 | 259.19 | 4.41 | 188.95 | 0.4661 | 844.2 | 612.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -24.66 | 259.00 | 4.22 | 187.23 | 0.5341 | 505.0 | 525.2 | |
| 24.87 | 115.75 | 13.85 | 64.46 | -19.72 | 258.73 | 3.95 | 188.15 | 0.4592 | 1071.8 | 311.3 | |
| 2.06 | -11.00 | 1.14 | -11.00 | -19.25 | 258.68 | 3.90 | 188.21 | 0.4518 | 1064.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -23.17 | 258.16 | 3.38 | 186.12 | 0.5105 | 855.0 | 732.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.96 | 257.92 | 3.14 | 186.99 | 0.4302 | -866.0 | -736.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.83 | 257.82 | 3.04 | 186.81 | 0.4279 | -846.0 | -660.9 | |
| 0.00 | 3.31 | 0.00 | 1.83 | -19.14 | 257.81 | 3.03 | 186.43 | 0.4484 | 288.0 | 220.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.10 | 257.80 | 3.02 | 186.68 | 0.4320 | -744.0 | -574.4 | |
| 0.00 | 4.74 | 0.00 | 2.61 | -18.57 | 257.71 | 2.93 | 186.36 | 0.4392 | 104.0 | 122.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.76 | 257.28 | 2.50 | 185.63 | 0.4259 | -908.0 | -714.9 | |
| 2.77 | 12.08 | 1.53 | 6.66 | -18.83 | 257.27 | 2.49 | 185.34 | 0.4427 | -691.7 | -367.1 | |
| 1.25 | 16.55 | 0.69 | 9.18 | -19.41 | 257.24 | 2.46 | 185.17 | 0.4516 | 55.2 | 33.3 | |
| 7.42 | -21.00 | 4.11 | -21.00 | -19.24 | 257.21 | 2.43 | 185.13 | 0.4489 | -578.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -18.46 | 257.07 | 2.29 | 185.00 | 0.4366 | -870.0 | -816.6 | |
| 0.00 | 3.40 | 0.00 | 1.86 | -17.66 | 256.93 | 2.15 | 184.86 | 0.4237 | -882.0 | -791.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.17 | 256.89 | 2.11 | 184.47 | 0.4474 | -693.0 | -609.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -19.44 | 256.66 | 1.88 | 183.96 | 0.4514 | -586.0 | -492.0 | |
| 1.97 | 41.59 | 1.08 | 22.97 | -18.56 | 256.46 | 1.68 | 183.66 | 0.4374 | -977.8 | -684.7 | |
| 1.16 | -27.00 | 0.64 | -27.00 | -19.16 | 256.44 | 1.66 | 183.52 | 0.4469 | -936.4 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -19.47 | 256.38 | 1.60 | 183.35 | 0.4516 | -581.0 | -543.2 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -19.91 | 256.38 | 1.60 | 183.30 | 0.4585 | -761.0 | -537.5 | |
| 12.25 | -27.00 | 6.76 | -27.00 | -18.86 | 256.31 | 1.53 | 183.28 | 0.4420 | -1046.4 | 999999 | |
| 4.65 | 6.08 | 2.58 | 3.38 | -19.57 | 256.15 | 1.37 | 182.87 | 0.4530 | -714.8 | -757.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.93 | 255.89 | 1.11 | 182.38 | 0.4427 | -746.0 | -523.5 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -19.57 | 255.45 | 0.67 | 181.39 | 0.4526 | -886.0 | -775.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.84 | 255.38 | 0.60 | 181.25 | 0.4568 | -621.0 | -503.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.32 | 254.84 | 0.06 | 180.11 | 0.4641 | -646.0 | -484.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.12 | 254.08 | -0.70 | 178.37 | 0.4139 | -857.0 | -649.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
