SDO HMI 2011-09-03 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.09 | 222.41 | 32.28 | 167.51 | 23.72 | 302.00 | 47.77 | 295.64 | 0.7524 | -42.8 | -90.4 | |
|
previous
or next observation for the same group /

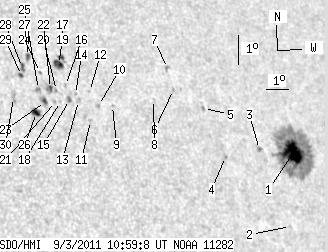

back to the solar disc SDO HMI 2011-09-03 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.25 | 150.08 | 18.26 | 117.97 | 22.92 | 304.63 | 50.40 | 293.78 | 0.7778 | -993.8 | -229.7 | |
| 0.00 | 1.25 | 0.00 | 0.95 | 20.70 | 303.47 | 49.24 | 291.15 | 0.7620 | -567.0 | -423.7 | |
| 0.00 | 2.24 | 0.00 | 1.71 | 23.19 | 303.08 | 48.85 | 294.45 | 0.7627 | -671.0 | -589.2 | |
| 0.00 | 1.88 | 0.00 | 1.39 | 23.12 | 301.37 | 47.14 | 294.77 | 0.7447 | -692.0 | -587.8 | |
| 0.00 | 1.97 | 0.00 | 1.46 | 24.69 | 301.05 | 46.82 | 296.92 | 0.7453 | -666.0 | -544.7 | |
| 0.00 | 1.25 | 0.00 | 0.91 | 25.40 | 299.94 | 45.71 | 298.18 | 0.7359 | -646.0 | -483.9 | |
| 0.00 | 2.50 | 0.00 | 1.83 | 26.08 | 299.99 | 45.76 | 299.06 | 0.7384 | -577.0 | -478.6 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 25.17 | 298.88 | 44.65 | 298.20 | 0.7240 | 223.0 | 293.9 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 25.13 | 296.96 | 42.73 | 298.81 | 0.7034 | 591.0 | 488.3 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 25.18 | 296.35 | 42.12 | 299.11 | 0.6969 | 624.0 | 470.2 | |
| 0.00 | 1.34 | 0.00 | 0.91 | 24.74 | 295.80 | 41.57 | 298.70 | 0.6894 | 632.0 | 415.6 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 25.65 | 296.14 | 41.91 | 299.83 | 0.6964 | 382.0 | 287.6 | |
| 0.00 | 1.97 | 0.00 | 1.34 | 25.41 | 295.54 | 41.31 | 299.73 | 0.6890 | 547.0 | 458.9 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 25.61 | 295.49 | 41.26 | 300.02 | 0.6892 | 537.0 | 510.0 | |
| 0.00 | 2.77 | 0.00 | 1.88 | 25.47 | 295.17 | 40.94 | 299.97 | 0.6851 | 762.0 | 600.0 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 25.92 | 295.18 | 40.95 | 300.59 | 0.6870 | 499.0 | 415.5 | |
| 1.52 | 11.72 | 1.04 | 8.00 | 26.85 | 295.36 | 41.13 | 301.80 | 0.6927 | 463.0 | 419.3 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 25.44 | 294.75 | 40.52 | 300.09 | 0.6804 | 736.0 | 545.3 | |
| 6.08 | -17.00 | 4.15 | -17.00 | 26.61 | 295.16 | 40.93 | 301.54 | 0.6896 | 734.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.72 | 25.80 | 294.72 | 40.49 | 300.60 | 0.6816 | 642.0 | 549.8 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 25.45 | 294.54 | 40.31 | 300.20 | 0.6782 | 764.0 | 577.0 | |
| 1.07 | 6.89 | 0.72 | 4.63 | 25.88 | 294.49 | 40.26 | 300.82 | 0.6794 | 810.8 | 596.6 | |
| 1.70 | 5.19 | 1.14 | 3.46 | 25.49 | 294.11 | 39.88 | 300.43 | 0.6736 | 840.7 | 638.8 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 26.42 | 294.27 | 40.04 | 301.66 | 0.6792 | 554.0 | 432.9 | |
| 0.00 | 2.59 | 0.00 | 1.73 | 25.89 | 293.97 | 39.74 | 301.05 | 0.6736 | 791.0 | 720.6 | |
| 4.20 | 5.63 | 2.79 | 3.73 | 25.17 | 293.60 | 39.37 | 300.20 | 0.6665 | 904.2 | 635.1 | |
| 2.24 | 3.13 | 1.50 | 2.10 | 26.96 | 293.97 | 39.74 | 302.55 | 0.6784 | 612.6 | 667.3 | |
| 2.33 | 3.85 | 1.55 | 2.57 | 26.63 | 293.57 | 39.34 | 302.28 | 0.6725 | 767.4 | 618.7 | |
| 1.70 | 2.33 | 1.13 | 1.55 | 26.38 | 293.43 | 39.19 | 302.00 | 0.6698 | 775.7 | 695.3 | |
| 0.00 | 3.22 | 0.00 | 2.12 | 25.71 | 292.81 | 38.58 | 301.33 | 0.6601 | 822.0 | 659.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
