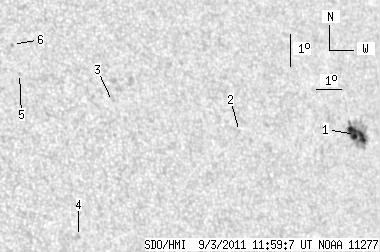

SDO HMI 2011-09-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.40 | 47.85 | 10.17 | 33.36 | 18.71 | 297.96 | 44.28 | 289.52 | 0.7029 | -408.3 | -224.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.40 | 42.57 | 10.17 | 30.13 | 18.63 | 298.97 | 45.29 | 289.10 | 0.7150 | -889.3 | -345.9 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 19.13 | 294.06 | 40.38 | 290.99 | 0.6578 | 613.0 | 427.5 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 20.43 | 289.23 | 35.55 | 294.70 | 0.6019 | 115.0 | 247.0 | |
| 0.00 | 1.70 | 0.00 | 1.01 | 16.39 | 286.99 | 33.31 | 288.79 | 0.5586 | 787.0 | 641.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 21.53 | 285.88 | 32.20 | 298.16 | 0.5644 | 541.0 | 478.1 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 22.45 | 285.84 | 32.16 | 299.70 | 0.5686 | 794.0 | 642.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
