SDO HMI 2011-09-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.67 | 229.18 | 32.63 | 127.67 | -19.56 | 258.04 | 4.36 | 188.98 | 0.4579 | 141.5 | 58.5 | |
|
previous
or next observation for the same group /

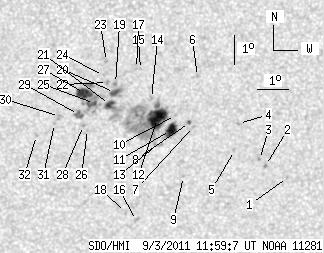

back to the solar disc SDO HMI 2011-09-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.62 | -21.80 | 263.06 | 9.38 | 197.39 | 0.5085 | 715.0 | 615.7 | |
| 0.00 | 1.88 | 0.00 | 1.07 | -21.37 | 262.31 | 8.63 | 196.33 | 0.4990 | 802.0 | 744.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.16 | 262.10 | 8.42 | 196.08 | 0.4951 | 874.0 | 803.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.91 | 261.35 | 7.67 | 195.43 | 0.4737 | 652.0 | 576.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.83 | 261.27 | 7.59 | 194.74 | 0.4870 | 791.0 | 545.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.30 | 259.96 | 6.28 | 193.58 | 0.4441 | 706.0 | 519.5 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -19.99 | 259.90 | 6.22 | 192.57 | 0.4695 | 550.0 | 531.5 | |
| 1.34 | 1.61 | 0.75 | 0.90 | -19.85 | 259.76 | 6.08 | 192.37 | 0.4669 | 756.8 | 838.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.70 | 259.64 | 5.96 | 191.30 | 0.4943 | 804.0 | 539.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.61 | 259.30 | 5.62 | 191.57 | 0.4618 | 708.0 | 581.4 | |
| 9.93 | 13.77 | 5.56 | 7.72 | -20.11 | 259.16 | 5.48 | 191.06 | 0.4691 | 813.0 | 535.3 | |
| 23.52 | 102.30 | 13.12 | 57.07 | -19.70 | 258.72 | 5.04 | 190.37 | 0.4615 | 1062.9 | 318.0 | |
| 0.00 | 3.58 | 0.00 | 2.01 | -20.59 | 258.75 | 5.07 | 190.07 | 0.4751 | 269.0 | 377.9 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -19.02 | 258.51 | 4.83 | 190.22 | 0.4505 | 891.0 | 645.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.04 | 258.13 | 4.45 | 189.82 | 0.4344 | -801.0 | -589.8 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -23.21 | 258.15 | 4.47 | 188.06 | 0.5131 | 730.0 | 621.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -18.01 | 258.00 | 4.32 | 189.55 | 0.4335 | -803.0 | -642.3 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -22.93 | 257.78 | 4.10 | 187.48 | 0.5081 | 582.0 | 459.7 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.50 | 257.34 | 3.66 | 187.95 | 0.4397 | -712.0 | -663.5 | |
| 4.65 | 9.30 | 2.57 | 5.14 | -18.81 | 257.32 | 3.64 | 187.80 | 0.4443 | -542.8 | -194.7 | |
| 4.83 | 22.18 | 2.68 | 12.32 | -19.21 | 257.17 | 3.49 | 187.36 | 0.4503 | -660.6 | 87.9 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -18.47 | 257.09 | 3.41 | 187.41 | 0.4386 | -1030.0 | -757.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.77 | 257.04 | 3.36 | 187.54 | 0.4275 | -859.0 | -752.6 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -18.23 | 256.95 | 3.27 | 187.20 | 0.4346 | -825.0 | -694.3 | |
| 2.06 | 40.69 | 1.14 | 22.50 | -19.17 | 256.68 | 3.00 | 186.36 | 0.4488 | -802.0 | -644.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -20.05 | 256.48 | 2.79 | 185.71 | 0.4621 | -466.0 | -516.2 | |
| 12.34 | -25.00 | 6.81 | -25.00 | -18.83 | 256.36 | 2.68 | 185.75 | 0.4430 | -994.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.92 | 256.34 | 2.66 | 185.47 | 0.4598 | -552.0 | -490.3 | |
| 0.00 | 6.44 | 0.00 | 3.58 | -19.54 | 256.18 | 2.50 | 185.21 | 0.4537 | -785.0 | -661.4 | |
| 0.00 | 2.59 | 0.00 | 1.44 | -19.61 | 255.57 | 1.89 | 183.93 | 0.4540 | -858.0 | -568.0 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.84 | 255.41 | 1.73 | 183.57 | 0.4575 | -709.0 | -577.9 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.25 | 254.83 | 1.15 | 182.34 | 0.4634 | -701.0 | -514.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
