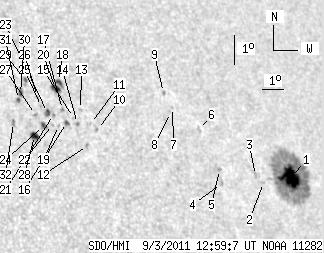

SDO HMI 2011-09-03 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.07 | 218.85 | 33.74 | 168.71 | 23.66 | 302.25 | 49.12 | 295.23 | 0.7659 | -46.8 | -108.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.41 | 150.39 | 19.63 | 120.92 | 22.89 | 304.76 | 51.63 | 293.51 | 0.7899 | -940.7 | -226.3 | |
| 0.00 | 1.07 | 0.00 | 0.84 | 22.87 | 303.34 | 50.21 | 293.75 | 0.7757 | -593.0 | -557.0 | |
| 0.00 | 2.24 | 0.00 | 1.74 | 23.12 | 303.05 | 49.92 | 294.13 | 0.7734 | -652.0 | -577.5 | |
| 0.00 | 2.15 | 0.00 | 1.62 | 23.02 | 301.29 | 48.16 | 294.39 | 0.7552 | -446.0 | -434.0 | |
| 0.00 | 1.61 | 0.00 | 1.22 | 23.46 | 301.40 | 48.27 | 294.94 | 0.7573 | -612.0 | -546.9 | |
| 0.00 | 2.41 | 0.00 | 1.82 | 24.78 | 301.07 | 47.94 | 296.73 | 0.7570 | -592.0 | -452.4 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 25.58 | 300.14 | 47.01 | 298.02 | 0.7497 | -536.0 | -470.8 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 25.43 | 299.96 | 46.83 | 297.88 | 0.7475 | -636.0 | -585.4 | |
| 0.00 | 1.79 | 0.00 | 1.33 | 26.08 | 299.96 | 46.83 | 298.73 | 0.7493 | -503.0 | -453.8 | |
| 0.00 | 1.34 | 0.00 | 0.94 | 25.18 | 296.38 | 43.25 | 298.70 | 0.7092 | 630.0 | 503.9 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 25.39 | 296.15 | 43.02 | 299.07 | 0.7075 | 572.0 | 463.9 | |
| 0.00 | 1.52 | 0.00 | 1.05 | 24.72 | 295.72 | 42.59 | 298.30 | 0.7005 | 640.0 | 395.8 | |
| 0.00 | 1.43 | 0.00 | 1.00 | 25.87 | 295.90 | 42.77 | 299.80 | 0.7065 | 436.0 | 354.1 | |
| 0.00 | 1.61 | 0.00 | 1.11 | 25.44 | 295.58 | 42.45 | 299.34 | 0.7014 | 726.0 | 606.3 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 25.64 | 295.48 | 42.35 | 299.65 | 0.7012 | 606.0 | 520.2 | |
| 0.72 | 1.70 | 0.49 | 1.17 | 25.51 | 295.11 | 41.98 | 299.61 | 0.6966 | 711.5 | 558.3 | |
| 0.00 | 1.61 | 0.00 | 1.11 | 25.93 | 295.11 | 41.98 | 300.19 | 0.6982 | 528.0 | 432.8 | |
| 2.41 | 12.52 | 1.68 | 8.68 | 26.83 | 295.33 | 42.20 | 301.32 | 0.7040 | 378.1 | 386.1 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 25.45 | 294.72 | 41.59 | 299.67 | 0.6922 | 514.0 | 482.6 | |
| 5.10 | -18.00 | 3.53 | -18.00 | 26.62 | 295.10 | 41.97 | 301.13 | 0.7007 | 747.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 25.81 | 294.65 | 41.52 | 300.20 | 0.6928 | 583.0 | 509.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 25.50 | 294.47 | 41.34 | 299.84 | 0.6897 | 561.0 | 519.4 | |
| 2.68 | 4.02 | 1.83 | 2.75 | 25.89 | 294.41 | 41.28 | 300.41 | 0.6906 | 758.9 | 680.7 | |
| 2.15 | 4.02 | 1.46 | 2.73 | 25.50 | 294.07 | 40.94 | 300.00 | 0.6853 | 775.6 | 665.0 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 26.10 | 294.23 | 41.10 | 300.77 | 0.6894 | 573.0 | 488.6 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 26.43 | 294.20 | 41.07 | 301.24 | 0.6903 | 539.0 | 449.2 | |
| 0.00 | 1.70 | 0.00 | 1.15 | 25.87 | 293.87 | 40.74 | 300.60 | 0.6845 | 829.0 | 721.2 | |
| 3.93 | 6.80 | 2.65 | 4.57 | 25.21 | 293.55 | 40.42 | 299.82 | 0.6785 | 889.3 | 546.3 | |
| 0.36 | 3.13 | 0.24 | 2.13 | 27.00 | 293.91 | 40.78 | 302.15 | 0.6897 | 676.8 | 596.4 | |
| 1.97 | 5.54 | 1.33 | 3.75 | 26.58 | 293.50 | 40.37 | 301.74 | 0.6835 | 729.0 | 678.8 | |
| 1.34 | -30.00 | 0.90 | -30.00 | 26.40 | 293.34 | 40.21 | 301.56 | 0.6809 | 841.1 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.55 | 25.69 | 292.82 | 39.69 | 300.80 | 0.6723 | 818.0 | 699.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
