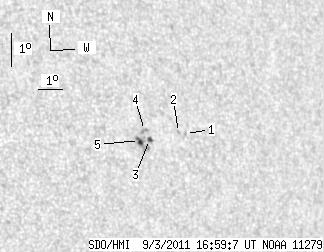

SDO HMI 2011-09-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.92 | 19.39 | 3.22 | 12.73 | 13.20 | 292.13 | 41.21 | 281.85 | 0.6577 | -729.4 | -579.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.90 | 13.21 | 293.73 | 42.81 | 281.70 | 0.6779 | -566.0 | -470.7 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 13.26 | 293.44 | 42.52 | 281.80 | 0.6744 | -609.0 | -488.9 | |
| 2.06 | 2.68 | 1.35 | 1.76 | 13.15 | 292.20 | 41.28 | 281.76 | 0.6586 | -610.0 | -473.0 | |
| 0.00 | 2.59 | 0.00 | 1.70 | 13.44 | 292.06 | 41.14 | 282.22 | 0.6570 | -861.0 | -742.0 | |
| 2.86 | 11.53 | 1.87 | 7.53 | 13.15 | 291.79 | 40.87 | 281.81 | 0.6533 | -896.9 | -568.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
