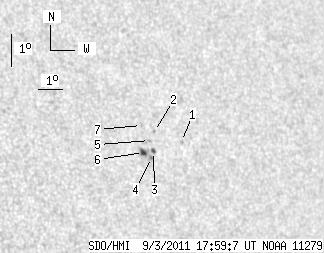

SDO HMI 2011-09-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.38 | 12.77 | 2.89 | 8.45 | 13.26 | 292.16 | 41.79 | 281.88 | 0.6651 | -672.2 | -608.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.72 | 13.31 | 293.45 | 43.09 | 281.82 | 0.6815 | -482.0 | -502.5 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 13.71 | 292.40 | 42.03 | 282.52 | 0.6686 | -615.0 | -422.4 | |
| 1.79 | 2.23 | 1.18 | 1.48 | 13.11 | 292.23 | 41.86 | 281.64 | 0.6659 | -675.0 | -659.4 | |
| 0.00 | 1.70 | 0.00 | 1.12 | 12.93 | 292.11 | 41.74 | 281.39 | 0.6642 | -708.0 | -612.7 | |
| 0.00 | 1.25 | 0.00 | 0.83 | 13.45 | 292.13 | 41.77 | 282.17 | 0.6650 | -774.0 | -724.6 | |
| 2.59 | 4.29 | 1.71 | 2.82 | 13.11 | 291.81 | 41.44 | 281.69 | 0.6606 | -907.1 | -806.6 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 13.93 | 291.90 | 41.54 | 282.92 | 0.6626 | -377.0 | -442.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
