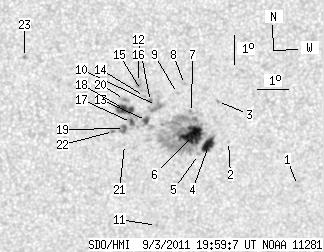

SDO HMI 2011-09-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.52 | 220.11 | 32.88 | 123.52 | -19.47 | 258.15 | 8.89 | 197.96 | 0.4730 | 88.3 | 45.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.73 | -21.52 | 262.27 | 13.01 | 203.67 | 0.5238 | 687.0 | 602.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.95 | 259.87 | 10.61 | 200.84 | 0.4884 | 671.0 | 595.5 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.58 | 259.42 | 10.16 | 201.10 | 0.4665 | -644.0 | -492.5 | |
| 11.26 | 135.71 | 6.38 | 76.45 | -20.07 | 259.22 | 9.96 | 199.58 | 0.4867 | 720.6 | 338.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -20.37 | 258.92 | 9.65 | 198.81 | 0.4895 | 512.0 | 388.1 | |
| 25.37 | -4.00 | 14.30 | -4.00 | -19.71 | 258.68 | 9.42 | 198.84 | 0.4789 | 1080.1 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.55 | -18.93 | 258.60 | 9.34 | 199.26 | 0.4672 | 347.0 | 230.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.99 | 258.32 | 9.06 | 199.44 | 0.4520 | -734.0 | -647.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.29 | 258.11 | 8.85 | 198.80 | 0.4553 | 723.0 | 458.3 | |
| 0.00 | 10.90 | 0.00 | 6.07 | -18.67 | 257.46 | 8.19 | 197.23 | 0.4579 | -276.0 | -370.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.79 | 257.69 | 8.42 | 195.15 | 0.5190 | 734.0 | 556.3 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -18.54 | 257.26 | 7.99 | 196.92 | 0.4549 | -888.0 | -782.5 | |
| 3.66 | 39.22 | 2.05 | 21.86 | -19.17 | 257.16 | 7.90 | 196.31 | 0.4640 | -706.4 | -500.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.37 | 257.06 | 7.79 | 196.63 | 0.4515 | -901.0 | -689.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.16 | 256.95 | 7.69 | 196.56 | 0.4480 | -930.0 | -737.9 | |
| 0.00 | 6.43 | 0.00 | 3.55 | -17.89 | 256.84 | 7.58 | 196.51 | 0.4435 | -659.0 | -724.9 | |
| 2.86 | -13.00 | 1.60 | -13.00 | -19.23 | 256.68 | 7.41 | 195.33 | 0.4628 | -912.5 | 999999 | |
| 11.97 | -13.00 | 6.65 | -13.00 | -18.79 | 256.43 | 7.17 | 195.11 | 0.4552 | -993.2 | 999999 | |
| 3.40 | 5.45 | 1.90 | 3.05 | -19.43 | 256.46 | 7.20 | 194.78 | 0.4649 | -810.5 | -650.7 | |
| 0.00 | 3.57 | 0.00 | 1.98 | -18.45 | 256.42 | 7.16 | 195.28 | 0.4501 | -945.0 | -758.0 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.98 | 256.48 | 7.22 | 194.52 | 0.4731 | -548.0 | -420.2 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -19.53 | 256.11 | 6.85 | 194.04 | 0.4650 | -793.0 | -639.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.01 | 253.18 | 3.92 | 189.06 | 0.4171 | -943.0 | -794.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
