SDO HMI 2011-09-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 15.62 | 1.74 | 10.55 | 15.30 | 289.70 | 42.65 | 284.93 | 0.6788 | 149.1 | 86.5 | |
|
previous
or next observation for the same group /

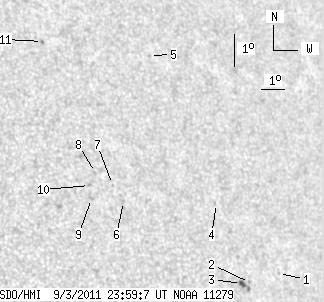

back to the solar disc SDO HMI 2011-09-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.51 | 13.24 | 293.60 | 46.55 | 281.43 | 0.7232 | -552.0 | -433.1 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 13.08 | 292.26 | 45.21 | 281.30 | 0.7072 | -550.0 | -506.8 | |
| 2.50 | 5.63 | 1.74 | 3.92 | 13.08 | 291.91 | 44.86 | 281.32 | 0.7030 | -775.4 | -610.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 15.59 | 291.44 | 44.39 | 284.94 | 0.6997 | -331.0 | -395.8 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 20.32 | 289.96 | 42.90 | 292.00 | 0.6909 | 678.0 | 507.1 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 15.97 | 287.57 | 40.51 | 286.15 | 0.6525 | 629.0 | 544.3 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 16.52 | 287.25 | 40.19 | 287.06 | 0.6495 | 440.0 | 358.6 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 16.94 | 286.65 | 39.60 | 287.83 | 0.6428 | 654.0 | 585.7 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 16.16 | 286.30 | 39.24 | 286.71 | 0.6367 | 663.0 | 574.0 | |
| 0.00 | 1.52 | 0.00 | 0.97 | 16.56 | 286.31 | 39.26 | 287.33 | 0.6377 | 699.0 | 595.7 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 21.10 | 285.63 | 38.58 | 294.52 | 0.6417 | 770.0 | 675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
