SDO HMI 2011-09-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.25 | 198.21 | 24.51 | 112.15 | -19.56 | 258.20 | 11.14 | 202.05 | 0.4862 | 287.5 | 62.1 | |
|
previous
or next observation for the same group /

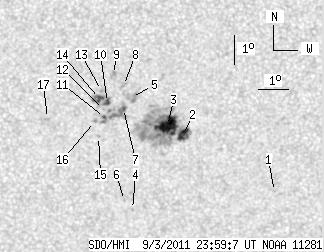

back to the solar disc SDO HMI 2011-09-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.63 | -22.07 | 262.44 | 15.39 | 206.87 | 0.5462 | 623.0 | 478.6 | |
| 9.56 | 134.41 | 5.46 | 76.31 | -20.01 | 259.21 | 12.15 | 203.49 | 0.4983 | 732.9 | 374.8 | |
| 24.13 | -2.00 | 13.70 | -2.00 | -19.69 | 258.66 | 11.60 | 202.80 | 0.4906 | 1071.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -22.55 | 257.72 | 10.67 | 199.06 | 0.5255 | 659.0 | 551.8 | |
| 0.00 | 8.58 | 0.00 | 4.81 | -18.71 | 257.42 | 10.36 | 201.36 | 0.4697 | -418.0 | -360.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -22.23 | 257.43 | 10.37 | 198.79 | 0.5197 | 703.0 | 587.6 | |
| 1.16 | 24.93 | 0.65 | 14.02 | -19.08 | 257.18 | 10.13 | 200.63 | 0.4736 | -715.9 | -564.4 | |
| 0.00 | 3.13 | 0.00 | 1.75 | -18.30 | 257.13 | 10.08 | 201.16 | 0.4622 | -723.0 | -679.5 | |
| 0.00 | 3.31 | 0.00 | 1.84 | -17.93 | 256.79 | 9.73 | 200.80 | 0.4549 | -886.0 | -705.8 | |
| 2.95 | 15.01 | 1.65 | 8.40 | -18.86 | 256.65 | 9.59 | 199.79 | 0.4677 | -833.8 | -767.3 | |
| 1.43 | -7.00 | 0.80 | -7.00 | -19.37 | 256.58 | 9.53 | 199.29 | 0.4746 | -848.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.10 | 256.53 | 9.48 | 199.40 | 0.4705 | -798.0 | -618.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.45 | 256.43 | 9.38 | 199.69 | 0.4606 | -757.0 | -634.5 | |
| 4.02 | -10.00 | 2.25 | -10.00 | -18.72 | 256.38 | 9.33 | 199.39 | 0.4642 | -1016.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -20.01 | 256.42 | 9.37 | 198.54 | 0.4831 | -661.0 | -457.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.50 | 256.26 | 9.21 | 198.60 | 0.4749 | -767.0 | -629.6 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -19.36 | 254.73 | 7.68 | 195.76 | 0.4660 | -632.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
