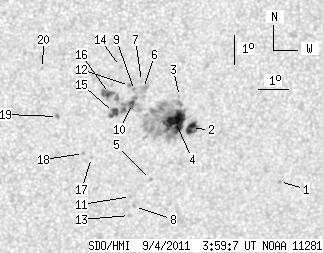

SDO HMI 2011-09-04 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.83 | 209.76 | 27.35 | 119.73 | -19.63 | 258.11 | 13.25 | 205.67 | 0.5002 | 300.0 | 78.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-04 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.91 | -21.92 | 262.41 | 17.55 | 210.14 | 0.5592 | 668.0 | 538.6 | |
| 9.21 | 12.70 | 5.30 | 7.31 | -19.98 | 259.23 | 14.37 | 207.20 | 0.5122 | 731.8 | 387.1 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -18.89 | 258.73 | 13.87 | 207.45 | 0.4942 | 710.0 | 502.8 | |
| 28.07 | 127.41 | 16.09 | 72.91 | -19.73 | 258.67 | 13.81 | 206.54 | 0.5050 | 1011.4 | 370.5 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -21.69 | 258.02 | 13.16 | 203.76 | 0.5272 | 720.0 | 568.5 | |
| 0.00 | 6.17 | 0.00 | 3.48 | -18.58 | 257.53 | 12.67 | 205.67 | 0.4819 | -278.0 | -271.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.34 | 257.44 | 12.58 | 205.74 | 0.4781 | -794.0 | -621.4 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -22.62 | 257.57 | 12.71 | 202.32 | 0.5371 | 737.0 | 624.9 | |
| 0.00 | 2.86 | 0.00 | 1.61 | -18.64 | 257.24 | 12.38 | 205.10 | 0.4808 | -846.0 | -691.8 | |
| 1.88 | 32.46 | 1.06 | 18.38 | -19.07 | 257.20 | 12.34 | 204.64 | 0.4866 | -713.4 | -526.7 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -22.26 | 257.40 | 12.55 | 202.32 | 0.5314 | 733.0 | 597.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.46 | 257.06 | 12.20 | 204.94 | 0.4773 | -942.0 | -831.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -22.93 | 257.43 | 12.57 | 201.86 | 0.5405 | 672.0 | 508.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -17.82 | 256.72 | 11.86 | 204.94 | 0.4661 | -846.0 | -758.8 | |
| 5.81 | -10.00 | 3.29 | -10.00 | -19.36 | 256.60 | 11.74 | 203.33 | 0.4869 | -795.9 | 999999 | |
| 2.86 | 12.88 | 1.61 | 7.25 | -18.72 | 256.43 | 11.57 | 203.57 | 0.4768 | -1056.3 | -811.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.88 | 255.99 | 11.13 | 201.04 | 0.5045 | -612.0 | -525.8 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -20.73 | 255.72 | 10.86 | 200.68 | 0.5011 | -655.0 | -480.4 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -19.45 | 254.78 | 9.92 | 199.96 | 0.4779 | -931.0 | -764.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.82 | 254.20 | 9.34 | 200.11 | 0.4513 | -709.0 | -491.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
