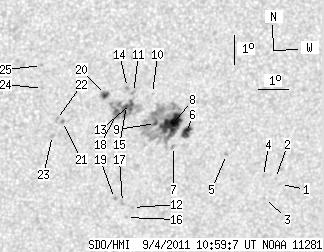

SDO HMI 2011-09-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.18 | 180.56 | 28.07 | 105.06 | -19.68 | 258.11 | 17.09 | 211.71 | 0.5279 | 328.7 | 117.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.38 | -21.92 | 262.73 | 21.70 | 215.63 | 0.5911 | 537.0 | 480.1 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -21.70 | 262.52 | 21.49 | 215.60 | 0.5870 | 584.0 | 528.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -22.38 | 262.24 | 21.22 | 214.55 | 0.5923 | 576.0 | 445.5 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -21.61 | 262.08 | 21.06 | 215.15 | 0.5824 | 720.0 | 500.9 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -20.79 | 260.68 | 19.66 | 214.20 | 0.5617 | 773.0 | 587.9 | |
| 7.24 | 8.40 | 4.26 | 4.94 | -19.98 | 259.21 | 18.19 | 213.04 | 0.5402 | 716.0 | 626.1 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -20.44 | 258.83 | 17.81 | 212.00 | 0.5428 | 533.0 | 395.4 | |
| 27.71 | 106.11 | 16.20 | 61.87 | -19.72 | 258.68 | 17.65 | 212.54 | 0.5328 | 920.7 | 413.7 | |
| 2.15 | -8.00 | 1.25 | -8.00 | -19.63 | 258.13 | 17.10 | 211.83 | 0.5274 | 857.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -18.61 | 257.92 | 16.90 | 212.61 | 0.5131 | -118.0 | -252.0 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -18.55 | 257.28 | 16.26 | 211.68 | 0.5073 | -698.0 | -644.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -22.49 | 257.68 | 16.66 | 208.36 | 0.5598 | 623.0 | 473.5 | |
| 1.34 | 37.72 | 0.77 | 21.73 | -18.92 | 257.25 | 16.23 | 211.24 | 0.5117 | -694.3 | -543.7 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -18.37 | 257.06 | 16.04 | 211.54 | 0.5034 | -893.0 | -787.9 | |
| 1.16 | -13.00 | 0.67 | -13.00 | -18.98 | 257.09 | 16.07 | 210.93 | 0.5113 | -716.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -22.83 | 257.52 | 16.50 | 207.82 | 0.5630 | 724.0 | 537.7 | |
| 0.00 | 2.41 | 0.00 | 1.43 | -22.30 | 257.32 | 16.30 | 208.01 | 0.5550 | 673.0 | 590.2 | |
| 4.38 | -13.00 | 2.52 | -13.00 | -19.24 | 256.78 | 15.76 | 210.17 | 0.5122 | -806.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -22.15 | 257.03 | 16.01 | 207.72 | 0.5511 | 794.0 | 667.6 | |
| 4.20 | 4.65 | 2.40 | 2.66 | -18.58 | 256.35 | 15.33 | 210.18 | 0.5006 | -889.3 | -838.4 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -19.45 | 255.01 | 13.99 | 207.11 | 0.5022 | -819.0 | -714.9 | |
| 0.00 | 1.88 | 0.00 | 1.07 | -19.37 | 254.81 | 13.78 | 206.84 | 0.4998 | -768.0 | -636.1 | |
| 0.00 | 2.06 | 0.00 | 1.18 | -19.91 | 254.72 | 13.70 | 206.19 | 0.5065 | -519.0 | -391.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.31 | 254.26 | 13.23 | 206.93 | 0.4818 | -724.0 | -550.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.54 | 254.17 | 13.14 | 207.55 | 0.4707 | -711.0 | -609.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
