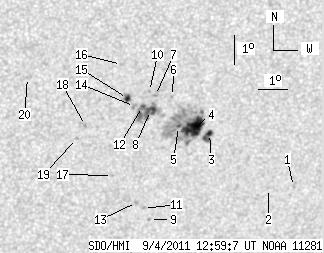

SDO HMI 2011-09-04 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.06 | 156.82 | 22.88 | 91.74 | -19.55 | 258.14 | 18.21 | 213.51 | 0.5353 | 227.4 | 148.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-04 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.83 | -21.85 | 262.46 | 22.53 | 216.71 | 0.5972 | 595.0 | 470.8 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -21.88 | 261.58 | 21.66 | 215.62 | 0.5903 | 608.0 | 537.1 | |
| 2.86 | 7.42 | 1.69 | 4.39 | -19.89 | 259.25 | 19.33 | 214.74 | 0.5484 | 738.0 | 632.1 | |
| 25.11 | 96.78 | 14.77 | 56.76 | -19.66 | 258.68 | 18.76 | 214.19 | 0.5410 | 961.0 | 445.8 | |
| 1.07 | -4.00 | 0.63 | -4.00 | -19.60 | 258.17 | 18.24 | 213.52 | 0.5362 | 906.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -18.58 | 257.85 | 17.93 | 214.19 | 0.5212 | -530.0 | -367.7 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -18.52 | 257.27 | 17.35 | 213.40 | 0.5157 | -831.0 | -675.6 | |
| 4.83 | 29.31 | 2.80 | 16.99 | -19.02 | 257.16 | 17.24 | 212.67 | 0.5210 | -723.1 | -556.2 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -22.77 | 257.58 | 17.65 | 209.49 | 0.5702 | 632.0 | 470.9 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.38 | 257.06 | 17.13 | 213.23 | 0.5122 | -867.0 | -728.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -22.38 | 257.32 | 17.40 | 209.50 | 0.5635 | 766.0 | 649.9 | |
| 2.06 | -8.00 | 1.19 | -8.00 | -18.88 | 256.87 | 16.95 | 212.40 | 0.5169 | -819.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -22.16 | 257.05 | 17.13 | 209.33 | 0.5589 | 829.0 | 660.5 | |
| 0.00 | 2.59 | 0.00 | 1.50 | -18.87 | 256.61 | 16.68 | 212.01 | 0.5146 | -857.0 | -595.2 | |
| 3.13 | 5.54 | 1.80 | 3.18 | -18.59 | 256.35 | 16.42 | 211.90 | 0.5091 | -851.1 | -593.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -17.44 | 256.04 | 16.11 | 212.70 | 0.4921 | -685.0 | -451.9 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -21.19 | 256.12 | 16.20 | 208.90 | 0.5402 | -569.0 | -448.3 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -19.45 | 255.03 | 15.11 | 208.93 | 0.5101 | -890.0 | -688.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -19.88 | 254.78 | 14.85 | 208.10 | 0.5139 | -652.0 | -570.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.77 | 252.98 | 13.06 | 207.17 | 0.4732 | -641.0 | -470.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
