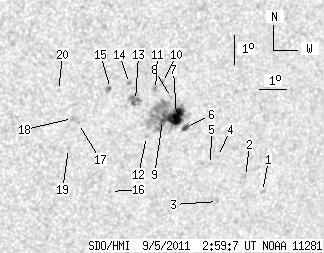

SDO HMI 2011-09-05 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.52 | 119.57 | 14.06 | 74.38 | -19.61 | 258.60 | 26.40 | 223.61 | 0.6091 | 388.3 | 270.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-05 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.31 | -22.37 | 262.62 | 30.42 | 224.40 | 0.6716 | 456.0 | 392.5 | |
| 0.00 | 1.79 | 0.00 | 1.17 | -21.80 | 261.85 | 29.65 | 224.33 | 0.6596 | 726.0 | 585.0 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -22.61 | 260.98 | 28.78 | 222.60 | 0.6590 | 702.0 | 544.1 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -21.04 | 260.64 | 28.44 | 224.04 | 0.6416 | 664.0 | 557.7 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -21.30 | 260.43 | 28.23 | 223.54 | 0.6421 | 771.0 | 591.1 | |
| 3.40 | 4.29 | 2.14 | 2.70 | -19.96 | 259.26 | 27.06 | 223.90 | 0.6188 | 574.2 | 502.6 | |
| 16.53 | 81.05 | 10.33 | 50.44 | -19.57 | 258.86 | 26.66 | 223.96 | 0.6113 | 977.8 | 520.9 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -18.91 | 258.56 | 26.36 | 224.44 | 0.6023 | 756.0 | 613.2 | |
| 1.34 | -7.00 | 0.83 | -7.00 | -19.67 | 258.37 | 26.18 | 223.31 | 0.6077 | 848.6 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -18.38 | 258.16 | 25.96 | 224.65 | 0.5932 | -574.0 | -392.6 | |
| 0.00 | 2.32 | 0.00 | 1.43 | -18.60 | 257.94 | 25.74 | 224.14 | 0.5933 | -365.0 | -255.6 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -20.19 | 257.89 | 25.69 | 222.19 | 0.6082 | 543.0 | 374.3 | |
| 0.00 | 11.17 | 0.00 | 6.84 | -18.94 | 257.29 | 25.09 | 223.01 | 0.5902 | -705.0 | -605.0 | |
| 0.00 | 1.79 | 0.00 | 1.09 | -18.35 | 256.99 | 24.79 | 223.39 | 0.5815 | -836.0 | -719.2 | |
| 1.25 | 2.86 | 0.76 | 1.73 | -18.48 | 256.34 | 24.14 | 222.48 | 0.5766 | -833.1 | -693.2 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -22.01 | 256.94 | 24.74 | 219.06 | 0.6179 | 678.0 | 559.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -19.61 | 255.39 | 23.19 | 220.00 | 0.5793 | -649.0 | -607.6 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -19.42 | 255.16 | 22.96 | 219.93 | 0.5753 | -763.0 | -657.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.44 | 255.17 | 22.97 | 218.77 | 0.5862 | -549.0 | -425.5 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -18.45 | 254.53 | 22.33 | 220.32 | 0.5591 | -583.0 | -375.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
