SDO HMI 2011-09-05 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.55 | 66.51 | 10.19 | 46.20 | -19.43 | 258.59 | 36.30 | 232.65 | 0.7042 | 187.4 | 288.4 | |
|
previous
or next observation for the same group /

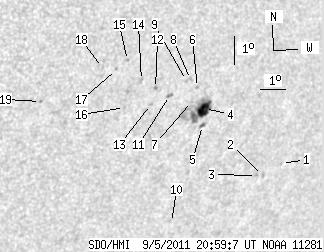

back to the solar disc SDO HMI 2011-09-05 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.68 | -21.64 | 262.82 | 40.53 | 233.02 | 0.7584 | 583.0 | 437.1 | |
| 0.00 | 1.70 | 0.00 | 1.28 | -21.99 | 262.13 | 39.83 | 232.17 | 0.7543 | 417.0 | 369.5 | |
| 0.00 | 1.43 | 0.00 | 1.07 | -21.96 | 261.87 | 39.57 | 232.02 | 0.7518 | 657.0 | 488.1 | |
| 12.76 | 41.68 | 8.93 | 29.06 | -19.45 | 258.97 | 36.68 | 232.92 | 0.7083 | 878.1 | 623.2 | |
| 1.79 | 2.86 | 1.26 | 2.01 | -20.03 | 259.05 | 36.75 | 232.29 | 0.7130 | 437.9 | 365.2 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -18.71 | 258.50 | 36.21 | 233.46 | 0.6987 | 741.0 | 604.3 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -19.17 | 258.38 | 36.09 | 232.82 | 0.7006 | 391.0 | 470.8 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -18.42 | 258.15 | 35.86 | 233.56 | 0.6932 | -458.0 | -297.9 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -18.44 | 258.00 | 35.71 | 233.42 | 0.6918 | -377.0 | -334.2 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -23.33 | 258.77 | 36.48 | 228.32 | 0.7331 | 434.0 | 461.6 | |
| 0.00 | 2.59 | 0.00 | 1.77 | -18.90 | 257.45 | 35.15 | 232.44 | 0.6894 | -576.0 | -435.4 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -18.62 | 256.83 | 34.54 | 232.31 | 0.6813 | -834.0 | -664.3 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -19.15 | 256.76 | 34.47 | 231.61 | 0.6844 | -498.0 | -427.5 | |
| 0.00 | 2.68 | 0.00 | 1.79 | -18.30 | 256.22 | 33.93 | 232.21 | 0.6728 | -716.0 | -492.9 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -17.59 | 255.53 | 33.24 | 232.54 | 0.6605 | -787.0 | -544.1 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -19.17 | 255.77 | 33.47 | 230.78 | 0.6747 | -309.0 | -275.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -17.86 | 255.17 | 32.88 | 231.91 | 0.6588 | -649.0 | -539.1 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -17.75 | 254.62 | 32.33 | 231.58 | 0.6523 | -577.0 | -534.0 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -18.74 | 252.51 | 30.21 | 228.48 | 0.6387 | -739.0 | -636.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
