SDO HMI 2011-10-05 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.41 | 34.37 | 18.06 | 95.49 | -14.21 | 115.86 | -77.58 | 105.79 | 0.9842 | -67.9 | -52.2 | |
|
previous
or next observation for the same group /

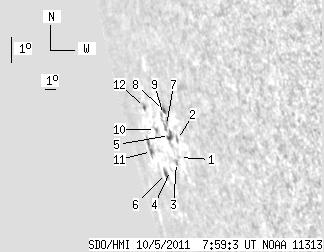

back to the solar disc SDO HMI 2011-10-05 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 1.80 | -14.43 | 118.22 | -75.22 | 106.40 | 0.9771 | -370.0 | -290.7 | |
| 0.00 | 2.37 | 0.00 | 5.26 | -13.83 | 118.56 | -74.88 | 105.85 | 0.9755 | -134.0 | -108.6 | |
| 0.00 | 1.67 | 0.00 | 4.01 | -14.66 | 117.61 | -75.83 | 106.52 | 0.9794 | -489.0 | -445.0 | |
| 0.00 | 0.44 | 0.00 | 1.17 | -15.05 | 116.36 | -77.09 | 106.71 | 0.9836 | -167.0 | -203.0 | |
| 1.05 | 5.71 | 2.50 | 13.62 | -13.81 | 117.58 | -75.87 | 105.67 | 0.9790 | 250.2 | -133.9 | |
| 1.32 | 4.22 | 3.86 | 12.35 | -15.24 | 115.53 | -77.91 | 106.76 | 0.9861 | -93.4 | 3.4 | |
| 0.00 | 3.25 | 0.00 | 7.79 | -13.51 | 117.49 | -75.95 | 105.34 | 0.9791 | 463.0 | 248.4 | |
| 1.67 | 2.29 | 3.92 | 5.35 | -13.03 | 117.56 | -75.88 | 104.87 | 0.9785 | 209.2 | 186.7 | |
| 0.00 | 0.53 | 0.00 | 1.26 | -13.17 | 117.43 | -76.02 | 104.99 | 0.9791 | 131.0 | 74.0 | |
| 0.00 | 2.99 | 0.00 | 8.43 | -13.85 | 115.59 | -77.85 | 105.37 | 0.9852 | 23.0 | -39.8 | |
| 1.23 | 7.74 | 4.25 | 27.04 | -14.75 | 113.76 | -79.69 | 105.99 | 0.9904 | -308.8 | -44.9 | |
| 1.14 | 2.37 | 3.53 | 7.41 | -13.28 | 114.55 | -78.89 | 104.64 | 0.9878 | -263.8 | -102.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
