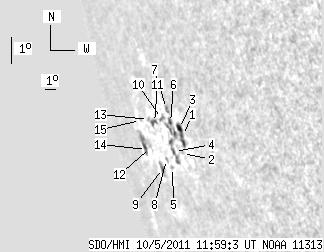

SDO HMI 2011-10-05 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.65 | 61.95 | 16.20 | 137.84 | -14.24 | 116.40 | -74.85 | 106.28 | 0.9751 | -40.4 | -117.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-05 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 9.49 | 1.47 | 17.74 | -13.82 | 119.00 | -72.25 | 106.32 | 0.9649 | 327.7 | 73.7 | |
| 0.00 | 1.49 | 0.00 | 2.88 | -14.44 | 118.49 | -72.76 | 106.86 | 0.9676 | -384.0 | -319.6 | |
| 3.16 | -1.00 | 5.90 | -1.00 | -13.61 | 118.85 | -72.41 | 106.08 | 0.9654 | 269.4 | 999999 | |
| 0.00 | 9.67 | 0.00 | 19.82 | -14.48 | 117.59 | -73.67 | 106.73 | 0.9713 | -536.0 | -481.4 | |
| 0.00 | 1.41 | 0.00 | 3.07 | -15.07 | 116.80 | -74.45 | 107.18 | 0.9748 | -357.0 | -304.5 | |
| 1.85 | 10.54 | 3.64 | 20.96 | -13.52 | 117.96 | -73.29 | 105.83 | 0.9690 | 285.5 | 169.2 | |
| 0.00 | 2.90 | 0.00 | 5.72 | -13.09 | 117.87 | -73.38 | 105.37 | 0.9691 | 368.0 | 297.3 | |
| 0.00 | 1.32 | 0.00 | 2.96 | -14.88 | 116.27 | -74.98 | 106.89 | 0.9765 | -463.0 | -389.9 | |
| 0.00 | 5.01 | 0.00 | 12.21 | -15.26 | 115.36 | -75.89 | 107.12 | 0.9799 | -284.0 | -114.4 | |
| 0.00 | 2.46 | 0.00 | 5.16 | -13.51 | 116.96 | -74.29 | 105.63 | 0.9730 | -227.0 | -152.7 | |
| 0.00 | 3.34 | 0.00 | 7.66 | -13.75 | 115.90 | -75.36 | 105.69 | 0.9771 | 31.0 | -52.8 | |
| 0.00 | 1.93 | 0.00 | 5.08 | -14.71 | 114.36 | -76.89 | 106.40 | 0.9828 | -469.0 | -368.2 | |
| 0.00 | 1.23 | 0.00 | 2.98 | -13.75 | 115.14 | -76.12 | 105.55 | 0.9797 | -384.0 | -339.1 | |
| 1.85 | 9.93 | 5.19 | 28.29 | -14.86 | 113.61 | -77.64 | 106.42 | 0.9851 | -243.2 | -44.1 | |
| 0.00 | 1.23 | 0.00 | 3.31 | -13.92 | 113.84 | -77.41 | 105.52 | 0.9839 | -242.0 | -194.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
