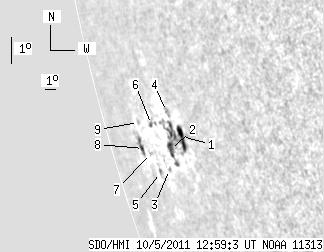

SDO HMI 2011-10-05 12:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.34 | 65.35 | 31.86 | 133.89 | -14.17 | 117.10 | -73.60 | 106.44 | 0.9702 | -127.2 | -67.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-05 12:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.26 | 45.86 | 14.83 | 87.29 | -13.79 | 118.98 | -71.72 | 106.40 | 0.9625 | 228.4 | -98.3 | |
| 6.15 | -1.00 | 12.26 | -1.00 | -14.38 | 117.35 | -73.36 | 106.69 | 0.9700 | -520.5 | 999999 | |
| 0.00 | 1.49 | 0.00 | 3.16 | -15.10 | 116.58 | -74.13 | 107.27 | 0.9736 | -298.0 | -291.6 | |
| 0.00 | 4.39 | 0.00 | 8.32 | -13.12 | 117.95 | -72.76 | 105.52 | 0.9665 | 389.0 | 301.7 | |
| 0.00 | 1.49 | 0.00 | 3.52 | -15.34 | 115.24 | -75.46 | 107.28 | 0.9785 | -140.0 | -38.6 | |
| 0.88 | 1.84 | 1.95 | 4.13 | -13.78 | 115.70 | -75.01 | 105.78 | 0.9759 | 96.2 | -81.8 | |
| 0.00 | 1.14 | 0.00 | 2.83 | -14.83 | 114.51 | -76.19 | 106.63 | 0.9806 | -419.0 | -368.5 | |
| 1.05 | 7.47 | 2.82 | 20.34 | -14.77 | 113.61 | -77.09 | 106.42 | 0.9834 | -364.6 | 5.8 | |
| 0.00 | 1.67 | 0.00 | 4.30 | -13.92 | 113.87 | -76.84 | 105.61 | 0.9822 | -386.0 | -297.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
