SDO HMI 2011-10-05 18:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.53 | 134.86 | 67.97 | 235.42 | -14.31 | 116.73 | -70.66 | 107.15 | 0.9571 | 113.7 | -173.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-05 18:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

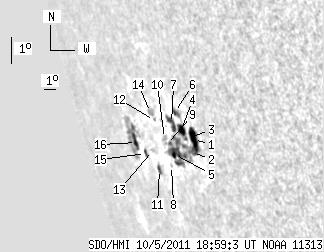

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.17 | 60.76 | 19.51 | 95.53 | -14.01 | 119.41 | -67.99 | 107.38 | 0.9441 | 464.0 | -446.5 | |
| 2.28 | -1.00 | 3.46 | -1.00 | -14.46 | 119.03 | -68.36 | 107.77 | 0.9466 | -261.8 | 999999 | |
| 0.44 | 18.79 | 0.67 | 29.55 | -14.04 | 118.79 | -68.60 | 107.29 | 0.9474 | 247.4 | 189.2 | |
| 6.32 | -3.00 | 9.76 | -3.00 | -13.79 | 118.52 | -68.87 | 106.97 | 0.9485 | 461.1 | 999999 | |
| 1.76 | -1.00 | 2.93 | -1.00 | -14.71 | 117.26 | -70.14 | 107.66 | 0.9559 | -587.8 | 999999 | |
| 1.76 | 4.57 | 2.73 | 7.06 | -13.28 | 118.23 | -69.16 | 106.39 | 0.9495 | 326.7 | 347.5 | |
| 7.29 | -3.00 | 11.71 | -3.00 | -13.69 | 117.71 | -69.69 | 106.69 | 0.9526 | 254.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 1.52 | -15.13 | 116.66 | -70.73 | 107.96 | 0.9592 | -296.0 | -283.7 | |
| 0.00 | 1.14 | 0.00 | 1.95 | -14.46 | 116.70 | -70.70 | 107.28 | 0.9584 | -412.0 | -435.5 | |
| 0.00 | 3.34 | 0.00 | 5.70 | -14.28 | 116.64 | -70.75 | 107.08 | 0.9585 | -452.0 | -429.8 | |
| 2.19 | 3.51 | 4.12 | 6.61 | -15.41 | 115.24 | -72.16 | 107.96 | 0.9659 | -199.1 | -18.8 | |
| 0.00 | 0.70 | 0.00 | 1.23 | -13.77 | 116.05 | -71.35 | 106.45 | 0.9608 | 137.0 | 93.1 | |
| 0.00 | 1.05 | 0.00 | 2.00 | -14.83 | 115.01 | -72.39 | 107.33 | 0.9663 | -470.0 | -409.9 | |
| 0.00 | 4.30 | 0.00 | 7.64 | -13.55 | 115.82 | -71.57 | 106.18 | 0.9616 | -410.0 | -293.8 | |
| 2.46 | 3.25 | 4.93 | 6.51 | -15.03 | 114.09 | -73.31 | 107.35 | 0.9703 | -260.3 | -351.2 | |
| 3.86 | 32.57 | 8.15 | 70.12 | -14.77 | 113.32 | -74.08 | 106.95 | 0.9731 | -312.4 | 103.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
