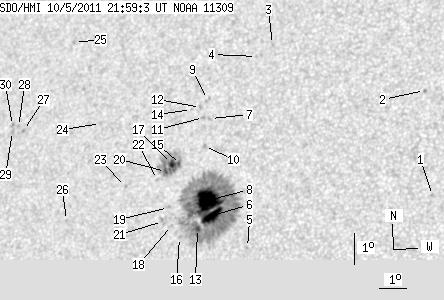

SDO HMI 2011-10-05 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.85 | 373.62 | 33.02 | 221.50 | 23.35 | 155.86 | -29.88 | 56.39 | 0.5511 | -778.8 | -379.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-05 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.73 | 23.79 | 164.23 | -21.51 | 47.78 | 0.4549 | -948.0 | -723.3 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 27.09 | 163.31 | -22.43 | 43.39 | 0.4965 | -771.0 | -674.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 28.31 | 157.30 | -28.44 | 47.55 | 0.5704 | -735.0 | -616.3 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 27.89 | 156.80 | -28.94 | 48.59 | 0.5725 | -603.0 | -486.1 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 21.88 | 157.97 | -27.77 | 57.33 | 0.5156 | -621.0 | -504.2 | |
| 14.49 | 301.18 | 8.52 | 177.55 | 22.80 | 156.47 | -29.27 | 56.88 | 0.5402 | -1236.9 | -411.3 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 25.83 | 155.61 | -30.13 | 52.65 | 0.5705 | -797.0 | -678.1 | |
| 32.58 | -6.00 | 19.24 | -6.00 | 23.26 | 156.17 | -29.56 | 56.34 | 0.5467 | -1216.6 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.12 | 26.43 | 155.33 | -30.41 | 51.96 | 0.5778 | -755.0 | -628.0 | |
| 0.00 | 1.84 | 0.00 | 1.10 | 24.94 | 155.63 | -30.11 | 54.03 | 0.5642 | -665.0 | -515.7 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 25.85 | 155.34 | -30.40 | 52.83 | 0.5737 | -839.0 | -632.6 | |
| 0.00 | 1.76 | 0.00 | 1.06 | 26.16 | 155.13 | -30.61 | 52.51 | 0.5782 | -596.0 | -366.0 | |
| 2.99 | -6.00 | 1.76 | -6.00 | 22.37 | 156.01 | -29.72 | 57.94 | 0.5432 | -919.5 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 26.08 | 154.81 | -30.93 | 52.88 | 0.5813 | -632.0 | -594.7 | |
| 0.79 | 40.30 | 0.48 | 24.34 | 24.33 | 154.87 | -30.86 | 55.55 | 0.5691 | -881.3 | -364.9 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 22.06 | 155.41 | -30.32 | 58.88 | 0.5487 | -80.0 | -105.0 | |
| 3.07 | -15.00 | 1.85 | -15.00 | 24.34 | 154.53 | -31.21 | 55.77 | 0.5733 | -842.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 22.41 | 155.03 | -30.71 | 58.55 | 0.5556 | -606.0 | -342.8 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 22.96 | 154.78 | -30.96 | 57.81 | 0.5619 | -458.0 | -316.8 | |
| 1.93 | -15.00 | 1.17 | -15.00 | 24.08 | 154.37 | -31.37 | 56.29 | 0.5735 | -797.4 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.47 | 22.52 | 154.66 | -31.08 | 58.62 | 0.5607 | -359.0 | -335.8 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 23.81 | 154.13 | -31.61 | 56.88 | 0.5747 | -487.0 | -337.7 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 23.52 | 152.97 | -32.77 | 58.07 | 0.5869 | -486.0 | -385.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 25.43 | 151.40 | -34.34 | 56.11 | 0.6159 | 637.0 | 463.7 | |
| 0.00 | 1.49 | 0.00 | 0.97 | 27.92 | 149.44 | -36.30 | 53.67 | 0.6516 | 566.0 | 418.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 22.33 | 151.00 | -34.74 | 61.06 | 0.6046 | 717.0 | 614.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 25.02 | 148.39 | -37.35 | 58.37 | 0.6480 | 769.0 | 674.3 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 25.13 | 148.14 | -37.60 | 58.33 | 0.6513 | 632.0 | 567.9 | |
| 0.00 | 2.20 | 0.00 | 1.43 | 24.96 | 147.95 | -37.79 | 58.68 | 0.6526 | 672.0 | 549.0 | |
| 0.00 | 1.49 | 0.00 | 0.98 | 25.14 | 147.88 | -37.86 | 58.44 | 0.6543 | 617.0 | 504.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
