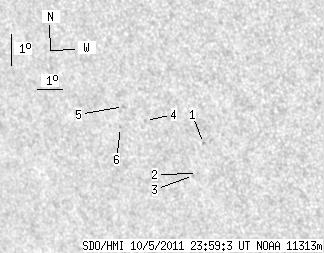

SDO HMI 2011-10-05 23:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.41 | 0.00 | 4.36 | -13.08 | 145.91 | -38.73 | 117.05 | 0.6865 | 14.3 | -61.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-05 23:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.70 | -13.10 | 147.53 | -37.11 | 118.05 | 0.6681 | 611.0 | 471.2 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -14.08 | 147.11 | -37.52 | 119.10 | 0.6784 | 478.0 | 308.4 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.16 | 146.94 | -37.69 | 119.09 | 0.6808 | 375.0 | 349.0 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -12.53 | 145.36 | -39.28 | 115.97 | 0.6898 | -246.0 | -412.3 | |
| 0.00 | 1.32 | 0.00 | 0.91 | -12.15 | 144.55 | -40.09 | 115.01 | 0.6970 | -552.0 | -477.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -12.83 | 144.30 | -40.34 | 115.77 | 0.7032 | -580.0 | -474.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
