SDO HMI 2011-10-06 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.83 | 370.33 | 37.78 | 216.42 | 23.32 | 155.77 | -28.31 | 55.26 | 0.5319 | -715.1 | -342.0 | |
|
previous
or next observation for the same group /

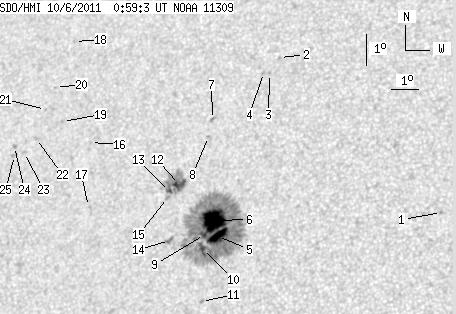

back to the solar disc SDO HMI 2011-10-06 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | 23.88 | 164.20 | -19.89 | 45.56 | 0.4374 | -856.0 | -657.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 28.55 | 157.30 | -26.79 | 45.71 | 0.5552 | -545.0 | -435.4 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 28.02 | 157.06 | -27.03 | 46.71 | 0.5532 | -609.0 | -553.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 28.04 | 156.83 | -27.26 | 46.90 | 0.5558 | -460.0 | -388.2 | |
| 14.93 | 306.91 | 8.65 | 178.36 | 22.79 | 156.40 | -27.68 | 55.67 | 0.5207 | -1232.9 | -386.1 | |
| 33.82 | -5.00 | 19.68 | -5.00 | 23.28 | 156.15 | -27.94 | 55.04 | 0.5272 | -1210.9 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.31 | 26.45 | 155.31 | -28.77 | 50.62 | 0.5597 | -655.0 | -579.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 25.90 | 155.31 | -28.78 | 51.47 | 0.5557 | -862.0 | -649.7 | |
| 2.46 | -5.00 | 1.43 | -5.00 | 22.83 | 155.92 | -28.17 | 55.99 | 0.5269 | -620.6 | 999999 | |
| 5.80 | -5.00 | 3.37 | -5.00 | 22.36 | 155.95 | -28.14 | 56.77 | 0.5235 | -869.2 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.96 | 20.75 | 156.25 | -27.84 | 59.38 | 0.5095 | 767.0 | 536.4 | |
| 6.41 | 36.89 | 3.81 | 21.94 | 24.34 | 154.62 | -29.47 | 54.50 | 0.5527 | -925.2 | -297.9 | |
| 1.41 | -12.00 | 0.84 | -12.00 | 24.10 | 154.30 | -29.78 | 55.12 | 0.5549 | -783.9 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.01 | 22.57 | 154.68 | -29.41 | 57.36 | 0.5406 | -509.0 | -430.9 | |
| 0.00 | 2.20 | 0.00 | 1.30 | 23.91 | 154.27 | -29.81 | 55.45 | 0.5539 | -695.0 | -634.3 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 25.46 | 150.85 | -33.24 | 55.37 | 0.6037 | 662.0 | 483.3 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 23.46 | 151.36 | -32.72 | 58.13 | 0.5861 | 607.0 | 578.0 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 28.63 | 149.10 | -34.99 | 51.90 | 0.6419 | 495.0 | 416.4 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 26.06 | 149.53 | -34.56 | 55.30 | 0.6220 | 650.0 | 543.6 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 27.12 | 148.87 | -35.21 | 54.17 | 0.6353 | 591.0 | 497.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 26.40 | 148.72 | -35.37 | 55.30 | 0.6330 | 537.0 | 399.2 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 25.46 | 148.67 | -35.41 | 56.68 | 0.6284 | 729.0 | 574.5 | |
| 0.00 | 1.84 | 0.00 | 1.17 | 24.99 | 148.34 | -35.74 | 57.56 | 0.6297 | 780.0 | 629.3 | |
| 0.00 | 1.76 | 0.00 | 1.12 | 25.15 | 147.88 | -36.21 | 57.57 | 0.6358 | 701.0 | 548.8 | |
| 0.00 | 1.84 | 0.00 | 1.18 | 24.87 | 147.97 | -36.11 | 57.93 | 0.6333 | 567.0 | 597.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
