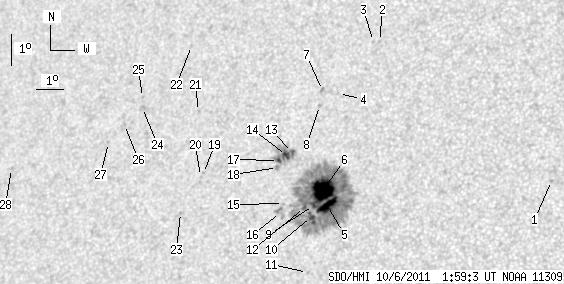

SDO HMI 2011-10-06 01:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.90 | 366.59 | 33.60 | 213.18 | 23.26 | 155.76 | -27.78 | 54.90 | 0.5251 | -669.3 | -369.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 01:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.82 | 23.93 | 164.16 | -19.37 | 44.78 | 0.4322 | -854.0 | -634.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 28.08 | 157.06 | -26.47 | 46.11 | 0.5479 | -697.0 | -574.8 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 28.07 | 156.84 | -26.70 | 46.34 | 0.5501 | -378.0 | -451.5 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 26.35 | 155.97 | -27.57 | 49.75 | 0.5456 | -536.0 | -344.5 | |
| 13.79 | 308.70 | 7.96 | 178.62 | 22.81 | 156.40 | -27.14 | 55.18 | 0.5143 | -1217.9 | -405.1 | |
| 29.43 | -5.00 | 17.05 | -5.00 | 23.27 | 156.11 | -27.42 | 54.63 | 0.5209 | -1235.8 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.10 | 26.41 | 155.34 | -28.19 | 50.19 | 0.5530 | -649.0 | -588.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 25.93 | 155.36 | -28.18 | 50.92 | 0.5492 | -930.0 | -639.4 | |
| 1.67 | -5.00 | 0.97 | -5.00 | 22.79 | 155.89 | -27.65 | 55.64 | 0.5203 | -552.8 | 999999 | |
| 3.87 | -5.00 | 2.24 | -5.00 | 22.44 | 155.89 | -27.64 | 56.23 | 0.5179 | -814.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 20.71 | 156.11 | -27.43 | 59.15 | 0.5040 | 699.0 | 578.7 | |
| 1.58 | -5.00 | 0.92 | -5.00 | 22.71 | 155.58 | -27.96 | 56.03 | 0.5236 | -406.4 | 999999 | |
| 2.20 | 27.32 | 1.30 | 16.16 | 24.40 | 154.73 | -28.81 | 53.88 | 0.5454 | -814.7 | -385.8 | |
| 3.43 | -13.00 | 2.02 | -13.00 | 24.30 | 154.53 | -29.01 | 54.21 | 0.5470 | -971.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 22.79 | 154.78 | -28.76 | 56.50 | 0.5340 | -335.0 | -208.9 | |
| 0.00 | 6.68 | 0.00 | 3.90 | 22.51 | 154.73 | -28.80 | 57.02 | 0.5327 | -641.0 | -410.4 | |
| 1.93 | -13.00 | 1.14 | -13.00 | 24.12 | 154.27 | -29.27 | 54.68 | 0.5489 | -754.0 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.56 | 23.90 | 154.29 | -29.25 | 55.03 | 0.5472 | -734.0 | -642.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 23.56 | 151.56 | -31.98 | 57.50 | 0.5778 | 802.0 | 683.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 23.46 | 151.47 | -32.07 | 57.71 | 0.5783 | 777.0 | 692.3 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 25.49 | 150.80 | -32.73 | 55.00 | 0.5981 | 694.0 | 558.0 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 27.56 | 149.84 | -33.69 | 52.58 | 0.6215 | 415.0 | 375.9 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 22.30 | 151.01 | -32.53 | 59.86 | 0.5775 | 773.0 | 642.6 | |
| 0.00 | 2.81 | 0.00 | 1.78 | 25.49 | 148.56 | -34.98 | 56.39 | 0.6236 | 644.0 | 549.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 25.80 | 148.45 | -35.08 | 55.99 | 0.6265 | 551.0 | 453.0 | |
| 0.00 | 1.32 | 0.00 | 0.84 | 24.91 | 148.02 | -35.52 | 57.55 | 0.6266 | 696.0 | 551.3 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 24.31 | 147.57 | -35.97 | 58.69 | 0.6288 | 546.0 | 479.9 | |
| 0.00 | 1.23 | 0.00 | 0.81 | 23.24 | 143.90 | -39.63 | 61.97 | 0.6663 | 665.0 | 473.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
