SDO HMI 2011-10-06 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.41 | 0.00 | 7.44 | -13.05 | 146.68 | -35.76 | 118.86 | 0.6522 | 220.3 | 112.9 | |
|
previous
or next observation for the same group /

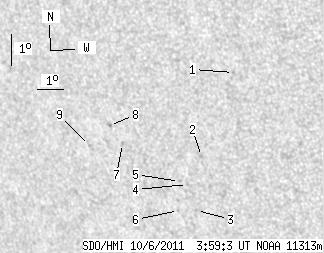

back to the solar disc SDO HMI 2011-10-06 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.65 | -10.18 | 149.75 | -32.69 | 116.85 | 0.5980 | 682.0 | 593.5 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -12.92 | 148.20 | -34.24 | 119.72 | 0.6337 | 720.0 | 634.5 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -14.67 | 147.72 | -34.72 | 121.78 | 0.6505 | 799.0 | 572.2 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -13.85 | 147.52 | -34.92 | 120.53 | 0.6475 | 590.0 | 422.3 | |
| 0.00 | 1.49 | 0.00 | 0.97 | -13.78 | 147.23 | -35.20 | 120.22 | 0.6503 | 667.0 | 440.0 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -14.72 | 147.03 | -35.41 | 121.35 | 0.6586 | 585.0 | 501.0 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -12.71 | 145.24 | -37.20 | 117.45 | 0.6669 | -776.0 | -687.1 | |
| 0.00 | 1.67 | 0.00 | 1.11 | -12.17 | 144.83 | -37.61 | 116.46 | 0.6687 | -683.0 | -536.9 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -12.87 | 143.92 | -38.52 | 116.85 | 0.6828 | -601.0 | -475.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
