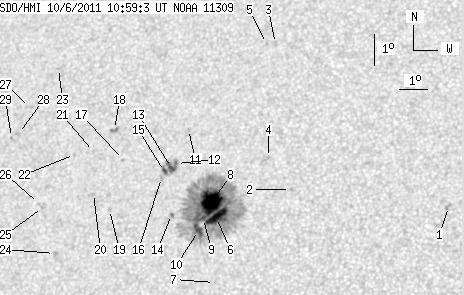

SDO HMI 2011-10-06 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.49 | 356.23 | 35.52 | 199.44 | 23.26 | 155.72 | -22.89 | 50.19 | 0.4668 | -593.1 | -323.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.16 | 0.00 | 1.69 | 23.44 | 164.16 | -14.44 | 37.76 | 0.3753 | -670.0 | -668.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 23.80 | 158.70 | -19.90 | 45.66 | 0.4374 | -659.0 | -528.9 | |
| 0.00 | 2.46 | 0.00 | 1.40 | 28.41 | 157.31 | -21.29 | 39.99 | 0.4990 | -742.0 | -559.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 24.77 | 157.76 | -20.84 | 45.17 | 0.4574 | -713.0 | -614.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 28.40 | 156.99 | -21.62 | 40.40 | 0.5021 | -785.0 | -602.4 | |
| 14.40 | 306.44 | 8.01 | 170.93 | 22.82 | 156.27 | -22.33 | 50.40 | 0.4564 | -1211.5 | -378.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 20.81 | 156.53 | -22.07 | 53.95 | 0.4363 | 686.0 | 435.9 | |
| 30.83 | -6.00 | 17.22 | -6.00 | 23.29 | 156.02 | -22.59 | 49.86 | 0.4635 | -1117.6 | 999999 | |
| 1.93 | -6.00 | 1.08 | -6.00 | 22.78 | 155.82 | -22.78 | 50.99 | 0.4614 | -472.2 | 999999 | |
| 6.85 | -6.00 | 3.82 | -6.00 | 22.39 | 155.71 | -22.89 | 51.81 | 0.4595 | -915.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 25.54 | 154.75 | -23.86 | 47.38 | 0.4979 | -634.0 | -455.0 | |
| 1.14 | 16.16 | 0.65 | 9.18 | 24.45 | 154.54 | -24.06 | 49.41 | 0.4908 | -613.2 | -583.2 | |
| 5.62 | -12.00 | 3.19 | -12.00 | 24.32 | 154.39 | -24.22 | 49.80 | 0.4914 | -883.5 | 999999 | |
| 0.35 | 1.23 | 0.20 | 0.69 | 22.85 | 154.68 | -23.93 | 52.07 | 0.4759 | -644.0 | -523.9 | |
| 2.37 | -12.00 | 1.35 | -12.00 | 24.18 | 154.16 | -24.44 | 50.26 | 0.4929 | -722.7 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 23.99 | 154.09 | -24.51 | 50.66 | 0.4921 | -733.0 | -498.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 24.49 | 152.60 | -26.00 | 51.26 | 0.5136 | -515.0 | -328.2 | |
| 0.00 | 3.43 | 0.00 | 1.99 | 25.42 | 152.06 | -26.55 | 50.24 | 0.5272 | 917.0 | 802.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 22.91 | 152.44 | -26.17 | 54.11 | 0.5035 | 712.0 | 582.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 23.38 | 151.75 | -26.85 | 53.90 | 0.5152 | 739.0 | 558.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 24.69 | 151.45 | -27.15 | 51.97 | 0.5285 | 659.0 | 465.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 24.56 | 150.78 | -27.83 | 52.76 | 0.5355 | 643.0 | 524.4 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 27.25 | 149.46 | -29.15 | 49.66 | 0.5703 | 759.0 | 629.2 | |
| 0.00 | 1.84 | 0.00 | 1.06 | 21.45 | 150.74 | -27.87 | 58.09 | 0.5146 | 670.0 | 671.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 22.85 | 149.99 | -28.62 | 56.24 | 0.5330 | 718.0 | 563.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 22.97 | 149.81 | -28.79 | 56.18 | 0.5359 | 542.0 | 452.3 | |
| 0.00 | 3.43 | 0.00 | 2.06 | 25.96 | 148.71 | -29.90 | 52.22 | 0.5692 | 688.0 | 531.9 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 25.11 | 148.52 | -30.09 | 53.67 | 0.5656 | 858.0 | 713.5 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 24.97 | 148.29 | -30.32 | 54.06 | 0.5674 | 670.0 | 601.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
