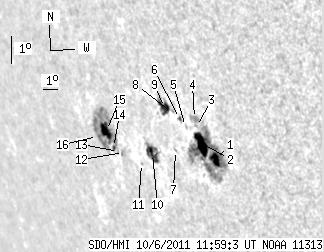

SDO HMI 2011-10-06 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.14 | 209.10 | 65.23 | 236.90 | -14.69 | 117.13 | -60.93 | 109.86 | 0.8995 | 71.0 | 34.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.46 | 100.81 | 7.64 | 104.32 | -14.99 | 120.39 | -57.67 | 111.10 | 0.8769 | 683.6 | 137.4 | |
| 16.51 | -1.00 | 17.15 | -1.00 | -14.54 | 119.75 | -58.30 | 110.42 | 0.8808 | 579.6 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.55 | -14.01 | 119.68 | -58.38 | 109.81 | 0.8802 | 570.0 | 509.5 | |
| 0.00 | 5.97 | 0.00 | 6.18 | -13.76 | 119.66 | -58.40 | 109.53 | 0.8797 | 247.0 | 254.0 | |
| 0.00 | 1.14 | 0.00 | 1.21 | -14.08 | 118.99 | -59.07 | 109.69 | 0.8856 | 421.0 | 315.2 | |
| 1.41 | 2.55 | 1.50 | 2.71 | -13.85 | 118.72 | -59.34 | 109.36 | 0.8872 | 332.4 | 363.8 | |
| 0.00 | 1.32 | 0.00 | 1.45 | -14.94 | 117.99 | -60.07 | 110.33 | 0.8948 | -549.0 | -479.5 | |
| 0.00 | 0.44 | 0.00 | 0.47 | -13.71 | 118.29 | -59.77 | 109.08 | 0.8901 | 523.0 | 514.6 | |
| 8.69 | 13.44 | 9.49 | 14.67 | -13.59 | 117.91 | -60.15 | 108.85 | 0.8927 | 330.3 | -14.3 | |
| 13.00 | 16.69 | 15.12 | 19.41 | -15.20 | 116.38 | -61.68 | 110.16 | 0.9067 | -492.8 | -429.2 | |
| 0.00 | 0.61 | 0.00 | 0.74 | -15.62 | 115.42 | -62.63 | 110.35 | 0.9140 | -228.0 | -202.4 | |
| 0.00 | 2.90 | 0.00 | 3.65 | -15.38 | 114.30 | -63.76 | 109.81 | 0.9209 | -185.0 | -253.4 | |
| 0.00 | 1.23 | 0.00 | 1.57 | -15.39 | 113.94 | -64.12 | 109.72 | 0.9232 | -476.0 | -416.2 | |
| 1.32 | 61.47 | 1.70 | 79.97 | -15.29 | 113.63 | -64.43 | 109.54 | 0.9249 | -401.1 | -55.0 | |
| 9.40 | -14.00 | 12.16 | -14.00 | -14.78 | 113.42 | -64.64 | 108.94 | 0.9254 | -519.0 | 999999 | |
| 0.35 | -14.00 | 0.47 | -14.00 | -15.05 | 112.59 | -65.47 | 109.03 | 0.9309 | 406.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
