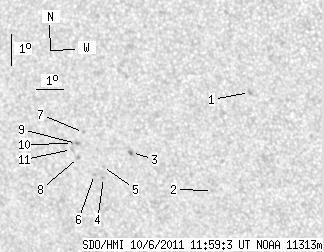

SDO HMI 2011-10-06 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.05 | 14.66 | 0.66 | 9.21 | -12.18 | 144.83 | -33.23 | 119.42 | 0.6165 | -311.9 | -250.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.11 | 0.00 | 1.24 | -10.10 | 149.67 | -28.38 | 120.12 | 0.5432 | 629.0 | 553.2 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.28 | 148.00 | -30.05 | 123.52 | 0.5869 | 519.0 | 421.5 | |
| 1.05 | 1.93 | 0.66 | 1.21 | -12.25 | 145.22 | -32.83 | 119.76 | 0.6126 | -596.8 | -647.6 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -13.12 | 144.06 | -34.00 | 120.14 | 0.6319 | -731.0 | -556.1 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -12.77 | 144.08 | -33.98 | 119.66 | 0.6295 | 359.0 | 296.4 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -13.04 | 143.74 | -34.32 | 119.80 | 0.6352 | -556.0 | -476.1 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -11.73 | 143.53 | -34.53 | 117.80 | 0.6297 | -728.0 | -582.8 | |
| 0.00 | 1.49 | 0.00 | 0.96 | -12.54 | 143.22 | -34.84 | 118.73 | 0.6382 | -639.0 | -580.9 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -12.10 | 143.21 | -34.85 | 118.10 | 0.6356 | -706.0 | -625.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -12.11 | 143.06 | -35.00 | 118.01 | 0.6375 | -586.0 | -487.3 | |
| 0.00 | 1.76 | 0.00 | 1.13 | -12.30 | 142.99 | -35.06 | 118.24 | 0.6394 | -492.0 | -350.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
