SDO HMI 2011-10-06 13:59:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.35 | 226.65 | 58.55 | 247.08 | -14.72 | 117.20 | -59.75 | 110.23 | 0.8910 | 95.2 | 60.5 | |
|
previous
or next observation for the same group /

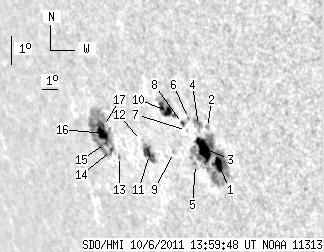

back to the solar disc SDO HMI 2011-10-06 13:59:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.41 | 102.36 | 6.34 | 102.14 | -15.12 | 120.50 | -56.45 | 111.64 | 0.8675 | 725.9 | 210.2 | |
| 0.00 | 2.19 | 0.00 | 2.16 | -13.96 | 120.34 | -56.61 | 110.30 | 0.8659 | 338.0 | 310.8 | |
| 17.56 | -1.00 | 17.62 | -1.00 | -14.68 | 119.83 | -57.12 | 110.93 | 0.8718 | 618.6 | 999999 | |
| 0.00 | 7.29 | 0.00 | 7.27 | -13.95 | 119.84 | -57.12 | 110.13 | 0.8700 | 360.0 | 345.6 | |
| 0.00 | 1.93 | 0.00 | 1.99 | -15.26 | 119.12 | -57.83 | 111.34 | 0.8787 | -421.0 | -386.2 | |
| 0.00 | 1.05 | 0.00 | 1.07 | -13.78 | 119.32 | -57.63 | 109.78 | 0.8737 | 222.0 | 208.6 | |
| 0.00 | 0.44 | 0.00 | 0.45 | -14.19 | 119.05 | -57.91 | 110.15 | 0.8768 | 430.0 | 349.6 | |
| 2.02 | 2.72 | 2.07 | 2.79 | -13.98 | 118.89 | -58.06 | 109.87 | 0.8776 | 358.4 | 151.2 | |
| 0.00 | 1.14 | 0.00 | 1.22 | -14.99 | 117.92 | -59.03 | 110.69 | 0.8873 | -506.0 | -435.4 | |
| 8.16 | 22.03 | 8.57 | 23.10 | -13.66 | 118.01 | -58.94 | 109.26 | 0.8837 | 327.0 | -78.3 | |
| 9.31 | 13.26 | 10.46 | 14.91 | -15.22 | 116.32 | -60.63 | 110.47 | 0.8994 | -520.5 | -488.0 | |
| 0.00 | 0.44 | 0.00 | 0.50 | -14.81 | 115.94 | -61.01 | 109.93 | 0.9013 | -507.0 | -536.6 | |
| 0.00 | 1.40 | 0.00 | 1.71 | -15.50 | 114.19 | -62.76 | 110.19 | 0.9146 | -271.0 | -368.5 | |
| 1.67 | 70.40 | 2.06 | 87.77 | -15.36 | 113.72 | -63.23 | 109.91 | 0.9174 | -550.0 | -42.9 | |
| 0.79 | -14.00 | 0.98 | -14.00 | -15.17 | 113.40 | -63.55 | 109.63 | 0.9192 | -295.8 | 999999 | |
| 7.29 | -14.00 | 9.04 | -14.00 | -14.85 | 113.44 | -63.52 | 109.30 | 0.9184 | -518.8 | 999999 | |
| 1.14 | -14.00 | 1.41 | -14.00 | -14.61 | 113.56 | -63.39 | 109.08 | 0.9172 | -565.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
