SDO HMI 2011-10-06 14:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.58 | 26.24 | 0.99 | 16.10 | -14.83 | 147.58 | -28.82 | 127.25 | 0.5903 | -102.9 | -134.3 | |
|
previous
or next observation for the same group /

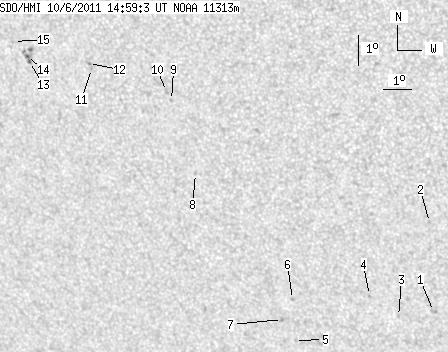

back to the solar disc SDO HMI 2011-10-06 14:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.28 | 0.00 | 1.35 | -19.81 | 156.19 | -20.21 | 143.28 | 0.5458 | 552.0 | 577.3 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -16.87 | 156.42 | -19.99 | 139.95 | 0.5105 | 595.0 | 524.2 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -20.03 | 154.97 | -21.44 | 141.93 | 0.5591 | 572.0 | 444.8 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -19.37 | 154.07 | -22.34 | 140.01 | 0.5601 | 522.0 | 413.2 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -21.01 | 151.18 | -25.23 | 138.59 | 0.6037 | -786.0 | -678.3 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -19.63 | 151.35 | -25.06 | 137.12 | 0.5884 | -706.0 | -534.9 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -20.32 | 150.88 | -25.53 | 137.44 | 0.5997 | -881.0 | -734.4 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -15.66 | 148.57 | -27.84 | 128.97 | 0.5805 | 468.0 | 314.7 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -13.35 | 148.05 | -28.36 | 125.16 | 0.5674 | 603.0 | 524.8 | |
| 0.00 | 2.37 | 0.00 | 1.42 | -13.07 | 147.91 | -28.50 | 124.61 | 0.5669 | 592.0 | 523.6 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -12.49 | 145.33 | -31.08 | 121.49 | 0.5933 | -726.0 | -626.2 | |
| 0.00 | 2.02 | 0.00 | 1.24 | -12.34 | 145.24 | -31.17 | 121.19 | 0.5933 | -775.0 | -595.3 | |
| 0.53 | 9.22 | 0.33 | 5.80 | -12.41 | 143.08 | -33.32 | 119.63 | 0.6195 | -533.5 | -545.7 | |
| 1.05 | -13.00 | 0.66 | -13.00 | -12.26 | 143.00 | -33.41 | 119.34 | 0.6196 | -697.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -11.81 | 142.58 | -33.83 | 118.40 | 0.6217 | -403.0 | -457.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
