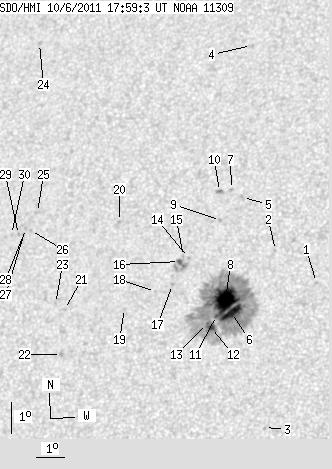

SDO HMI 2011-10-06 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.73 | 353.53 | 28.76 | 193.29 | 23.35 | 155.59 | -19.16 | 45.43 | 0.4246 | -659.0 | -377.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.71 | 23.93 | 158.97 | -15.78 | 39.24 | 0.3946 | -757.0 | -523.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 24.89 | 157.44 | -17.32 | 40.06 | 0.4213 | -743.0 | -644.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 19.38 | 157.76 | -17.00 | 50.35 | 0.3597 | -784.0 | -709.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 31.46 | 155.40 | -19.35 | 33.42 | 0.5153 | -668.0 | -582.9 | |
| 0.00 | 2.37 | 0.00 | 1.32 | 26.53 | 156.02 | -18.73 | 39.47 | 0.4538 | -358.0 | -325.7 | |
| 11.67 | 311.91 | 6.34 | 169.91 | 22.90 | 156.21 | -18.55 | 45.43 | 0.4131 | -1408.3 | -414.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 26.78 | 155.59 | -19.16 | 39.70 | 0.4607 | -642.0 | -434.4 | |
| 33.60 | -6.00 | 18.33 | -6.00 | 23.30 | 155.94 | -18.81 | 45.07 | 0.4201 | -1309.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 25.78 | 155.38 | -19.38 | 41.58 | 0.4521 | -903.0 | -723.5 | |
| 0.00 | 2.72 | 0.00 | 1.52 | 26.70 | 155.18 | -19.57 | 40.38 | 0.4639 | -926.0 | -699.7 | |
| 1.32 | -6.00 | 0.72 | -6.00 | 22.79 | 155.71 | -19.05 | 46.34 | 0.4176 | -517.6 | 999999 | |
| 3.25 | -6.00 | 1.77 | -6.00 | 22.41 | 155.59 | -19.16 | 47.22 | 0.4152 | -1113.3 | 999999 | |
| 0.70 | -6.00 | 0.38 | -6.00 | 22.53 | 155.44 | -19.32 | 47.20 | 0.4182 | -788.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 24.57 | 154.45 | -20.30 | 44.82 | 0.4494 | -613.0 | -521.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 24.59 | 154.27 | -20.48 | 45.01 | 0.4517 | -19.0 | -38.5 | |
| 2.19 | 11.05 | 1.22 | 6.12 | 24.43 | 154.16 | -20.59 | 45.44 | 0.4513 | -742.0 | -753.5 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 23.70 | 154.04 | -20.71 | 46.88 | 0.4456 | -767.0 | -572.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 23.46 | 153.48 | -21.27 | 48.00 | 0.4497 | -507.0 | -379.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 22.89 | 152.49 | -22.26 | 50.20 | 0.4561 | 834.0 | 606.5 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 25.61 | 151.80 | -22.95 | 46.28 | 0.4885 | 972.0 | 788.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 22.77 | 150.39 | -24.36 | 52.65 | 0.4804 | 807.0 | 575.9 | |
| 0.00 | 1.93 | 0.00 | 1.08 | 21.37 | 150.54 | -24.21 | 55.07 | 0.4678 | 860.0 | 676.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 22.94 | 150.04 | -24.72 | 52.69 | 0.4861 | 590.0 | 458.7 | |
| 0.00 | 1.49 | 0.00 | 0.91 | 31.20 | 147.36 | -27.39 | 42.50 | 0.5848 | 633.0 | 543.3 | |
| 0.00 | 1.84 | 0.00 | 1.07 | 25.76 | 148.77 | -25.98 | 49.16 | 0.5236 | 621.0 | 552.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 25.18 | 148.65 | -26.10 | 50.21 | 0.5203 | 855.0 | 643.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 25.24 | 148.45 | -26.30 | 50.31 | 0.5230 | 967.0 | 811.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 25.05 | 148.42 | -26.33 | 50.65 | 0.5218 | 808.0 | 617.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 25.04 | 148.24 | -26.51 | 50.83 | 0.5238 | 862.0 | 708.4 | |
| 0.00 | 1.32 | 0.00 | 0.77 | 25.02 | 147.98 | -26.77 | 51.08 | 0.5267 | 706.0 | 522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
