SDO HMI 2011-10-06 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.65 | 0.00 | 15.57 | -14.83 | 146.89 | -27.87 | 128.18 | 0.5792 | -99.5 | -183.8 | |
|
previous
or next observation for the same group /

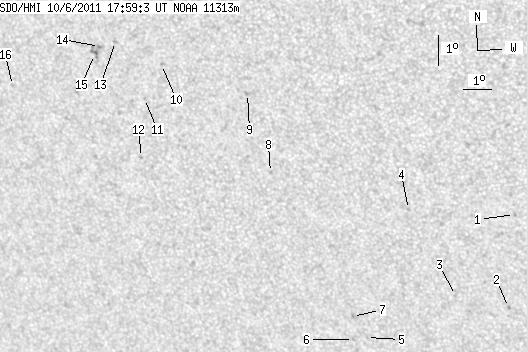

back to the solar disc SDO HMI 2011-10-06 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.60 | -16.70 | 156.81 | -17.95 | 142.73 | 0.4894 | 752.0 | 632.0 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -19.79 | 156.27 | -18.48 | 145.65 | 0.5309 | 785.0 | 709.2 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -19.46 | 154.52 | -20.23 | 142.85 | 0.5420 | 646.0 | 463.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -16.68 | 153.28 | -21.47 | 137.70 | 0.5230 | 632.0 | 461.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -21.01 | 151.23 | -23.53 | 140.52 | 0.5883 | -768.0 | -607.4 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -21.10 | 150.75 | -24.00 | 140.07 | 0.5934 | -658.0 | -581.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.32 | 150.85 | -23.90 | 139.27 | 0.5846 | -851.0 | -633.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -15.70 | 148.70 | -26.05 | 130.88 | 0.5614 | 711.0 | 559.2 | |
| 0.00 | 2.46 | 0.00 | 1.45 | -13.20 | 148.23 | -26.53 | 126.75 | 0.5448 | 827.0 | 617.4 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -12.44 | 145.32 | -29.43 | 122.82 | 0.5732 | -794.0 | -677.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.56 | 144.57 | -30.18 | 123.81 | 0.5905 | -786.0 | -641.5 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -15.47 | 144.17 | -30.58 | 126.15 | 0.6095 | 705.0 | 584.3 | |
| 0.00 | 1.67 | 0.00 | 1.02 | -11.81 | 143.77 | -30.99 | 120.56 | 0.5874 | -674.0 | -568.8 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -12.00 | 143.17 | -31.58 | 120.36 | 0.5960 | -838.0 | -815.9 | |
| 0.00 | 6.14 | 0.00 | 3.80 | -12.27 | 142.95 | -31.80 | 120.58 | 0.6004 | -619.0 | -594.0 | |
| 0.00 | 1.49 | 0.00 | 0.97 | -13.45 | 139.75 | -35.01 | 119.88 | 0.6458 | -662.0 | -479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
