SDO HMI 2011-10-06 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.29 | 333.89 | 28.26 | 180.85 | 23.39 | 155.71 | -17.38 | 42.76 | 0.4055 | -724.2 | -386.9 | |
|
previous
or next observation for the same group /

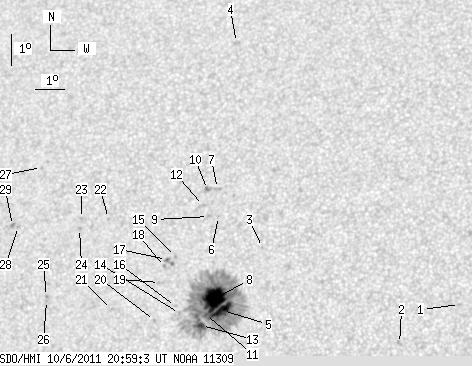

back to the solar disc SDO HMI 2011-10-06 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.74 | 23.29 | 164.11 | -8.98 | 26.24 | 0.3259 | -713.0 | -599.0 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 22.04 | 162.23 | -10.87 | 32.86 | 0.3236 | -772.0 | -609.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 24.93 | 157.33 | -15.77 | 37.52 | 0.4064 | -719.0 | -557.9 | |
| 0.00 | 2.98 | 0.00 | 1.71 | 31.51 | 155.33 | -17.76 | 31.28 | 0.5030 | -503.0 | -526.7 | |
| 11.49 | 293.43 | 6.19 | 158.47 | 22.92 | 156.22 | -16.87 | 42.88 | 0.3946 | -1390.4 | -419.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 25.87 | 155.67 | -17.43 | 38.64 | 0.4334 | -793.0 | -648.2 | |
| 0.00 | 2.28 | 0.00 | 1.26 | 26.75 | 155.50 | -17.60 | 37.51 | 0.4453 | -700.0 | -565.9 | |
| 34.92 | -5.00 | 18.88 | -5.00 | 23.28 | 155.90 | -17.19 | 42.70 | 0.4021 | -1310.9 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.01 | 25.85 | 155.32 | -17.77 | 39.17 | 0.4367 | -707.0 | -615.6 | |
| 0.00 | 3.69 | 0.00 | 2.04 | 26.71 | 155.15 | -17.95 | 38.08 | 0.4481 | -895.0 | -657.2 | |
| 1.49 | -5.00 | 0.81 | -5.00 | 22.77 | 155.66 | -17.43 | 44.02 | 0.3992 | -575.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 26.20 | 155.09 | -18.00 | 38.97 | 0.4428 | -688.0 | -568.6 | |
| 3.42 | -5.00 | 1.85 | -5.00 | 22.43 | 155.57 | -17.52 | 44.82 | 0.3966 | -1099.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 22.77 | 154.77 | -18.32 | 45.34 | 0.4092 | -625.0 | -469.0 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 24.55 | 154.37 | -18.72 | 42.72 | 0.4322 | -645.0 | -459.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 22.99 | 154.61 | -18.49 | 45.19 | 0.4133 | -371.0 | -340.0 | |
| 0.97 | 3.86 | 0.53 | 2.12 | 24.45 | 154.08 | -19.02 | 43.31 | 0.4343 | -696.9 | -776.5 | |
| 0.00 | 2.11 | 0.00 | 1.16 | 24.23 | 154.04 | -19.05 | 43.75 | 0.4323 | -805.0 | -694.8 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 23.72 | 153.95 | -19.15 | 44.78 | 0.4281 | -713.0 | -540.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 22.53 | 153.95 | -19.14 | 46.97 | 0.4161 | 873.0 | 648.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 22.82 | 152.42 | -20.67 | 48.44 | 0.4367 | 790.0 | 597.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 25.67 | 151.82 | -21.27 | 44.21 | 0.4709 | 851.0 | 681.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 25.63 | 150.86 | -22.23 | 45.42 | 0.4809 | 844.0 | 694.0 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 25.31 | 150.85 | -22.24 | 45.96 | 0.4780 | 922.0 | 766.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 23.13 | 150.09 | -23.01 | 50.59 | 0.4671 | 661.0 | 554.8 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 23.01 | 150.11 | -22.98 | 50.79 | 0.4658 | 600.0 | 437.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 27.19 | 149.08 | -24.02 | 44.94 | 0.5146 | 699.0 | 574.9 | |
| 0.00 | 1.58 | 0.00 | 0.90 | 25.28 | 148.66 | -24.44 | 48.42 | 0.5022 | 815.0 | 591.1 | |
| 0.00 | 2.19 | 0.00 | 1.26 | 25.30 | 148.43 | -24.66 | 48.61 | 0.5049 | 974.0 | 798.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
