SDO HMI 2011-10-06 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.28 | 0.00 | 7.31 | -13.02 | 145.59 | -27.51 | 125.63 | 0.5556 | -0.2 | -13.0 | |
|
previous
or next observation for the same group /

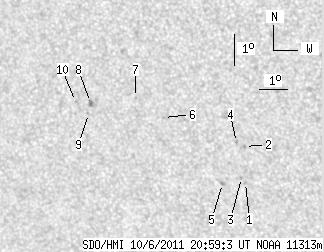

back to the solar disc SDO HMI 2011-10-06 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.35 | 148.04 | -25.05 | 130.04 | 0.5380 | 681.0 | 565.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -13.19 | 148.14 | -24.95 | 128.43 | 0.5264 | 841.0 | 660.8 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -14.19 | 147.93 | -25.17 | 129.68 | 0.5379 | 665.0 | 605.7 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -13.08 | 147.88 | -25.21 | 127.97 | 0.5284 | 753.0 | 588.0 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -14.42 | 147.25 | -25.85 | 129.27 | 0.5476 | 633.0 | 542.9 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -12.42 | 145.45 | -27.64 | 124.44 | 0.5516 | -765.0 | -608.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -11.83 | 144.55 | -28.55 | 122.70 | 0.5580 | -676.0 | -544.9 | |
| 0.00 | 2.98 | 0.00 | 1.81 | -12.08 | 142.93 | -30.17 | 121.66 | 0.5794 | -881.0 | -723.7 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -12.44 | 142.82 | -30.28 | 122.08 | 0.5834 | -627.0 | -545.1 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -12.08 | 142.40 | -30.70 | 121.21 | 0.5859 | -626.0 | -596.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
