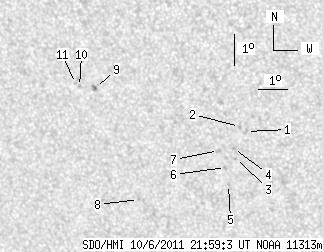

SDO HMI 2011-10-06 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 16.06 | 0.58 | 9.53 | -13.37 | 145.68 | -26.86 | 126.78 | 0.5508 | 408.2 | 213.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-06 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.12 | -13.20 | 148.09 | -24.45 | 129.01 | 0.5207 | 835.0 | 612.9 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -13.05 | 147.87 | -24.67 | 128.53 | 0.5219 | 724.0 | 551.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.09 | 147.62 | -24.92 | 129.80 | 0.5341 | 677.0 | 525.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -13.77 | 147.59 | -24.96 | 129.29 | 0.5316 | 892.0 | 672.9 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -14.93 | 147.28 | -25.27 | 130.66 | 0.5458 | 652.0 | 459.8 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -14.39 | 147.24 | -25.30 | 129.83 | 0.5412 | 650.0 | 561.4 | |
| 0.00 | 1.76 | 0.00 | 1.03 | -13.86 | 147.07 | -25.48 | 128.85 | 0.5384 | 738.0 | 546.5 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -15.59 | 144.05 | -28.50 | 128.23 | 0.5873 | 703.0 | 453.5 | |
| 0.97 | 2.90 | 0.58 | 1.75 | -12.08 | 143.01 | -29.53 | 122.19 | 0.5718 | -643.9 | -747.8 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -12.08 | 142.44 | -30.10 | 121.71 | 0.5786 | -716.0 | -565.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -12.00 | 142.31 | -30.23 | 121.46 | 0.5796 | -463.0 | -415.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
