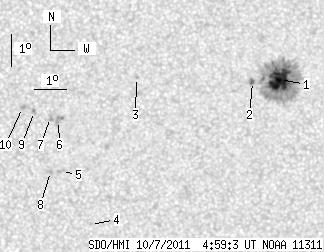

SDO HMI 2011-10-07 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.93 | 156.93 | 14.84 | 83.35 | -11.38 | 179.83 | 11.13 | 211.79 | 0.3613 | 586.3 | 306.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.14 | 136.03 | 14.42 | 72.33 | -11.19 | 180.65 | 11.95 | 214.09 | 0.3641 | 1219.3 | 458.4 | |
| 0.79 | 2.28 | 0.42 | 1.21 | -11.24 | 179.81 | 11.11 | 212.11 | 0.3572 | 1028.9 | 831.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -11.04 | 176.21 | 7.51 | 203.22 | 0.3270 | 832.0 | 528.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.71 | 174.92 | 6.22 | 195.50 | 0.3919 | -721.0 | -563.5 | |
| 0.00 | 2.37 | 0.00 | 1.26 | -13.99 | 173.97 | 5.27 | 194.35 | 0.3611 | -848.0 | -657.0 | |
| 0.00 | 5.01 | 0.00 | 2.63 | -12.37 | 173.84 | 5.14 | 195.23 | 0.3348 | -877.0 | -796.8 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -12.27 | 173.59 | 4.90 | 194.60 | 0.3322 | -798.0 | -601.7 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -13.99 | 173.63 | 4.93 | 193.46 | 0.3597 | -732.0 | -632.6 | |
| 0.00 | 2.28 | 0.00 | 1.20 | -12.08 | 173.10 | 4.40 | 193.32 | 0.3271 | -1032.0 | -807.1 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -11.95 | 172.73 | 4.03 | 192.32 | 0.3237 | -890.0 | -807.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
