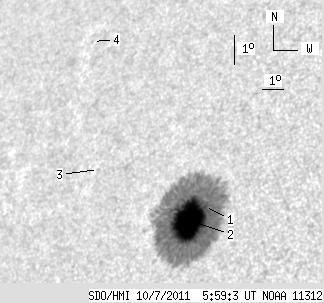

SDO HMI 2011-10-07 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.76 | 475.37 | 59.09 | 344.05 | 23.02 | 122.70 | -45.45 | 64.24 | 0.7307 | -1141.5 | -288.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 473.44 | 0.25 | 342.46 | 23.49 | 123.20 | -44.95 | 63.47 | 0.7265 | -1292.0 | -292.9 | |
| 81.41 | -1.00 | 58.84 | -1.00 | 23.00 | 122.72 | -45.43 | 64.26 | 0.7304 | -1196.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.91 | 24.23 | 117.65 | -50.50 | 64.01 | 0.7851 | 499.0 | 419.2 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 28.16 | 114.84 | -53.31 | 59.88 | 0.8195 | 608.0 | 464.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
