SDO HMI 2011-10-07 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.56 | 258.80 | 59.14 | 217.87 | -15.06 | 118.30 | -49.85 | 114.03 | 0.8090 | 201.5 | 185.0 | |
|
previous
or next observation for the same group /

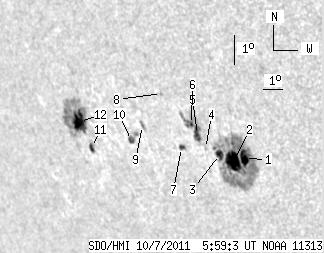

back to the solar disc SDO HMI 2011-10-07 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.52 | 151.49 | 6.73 | 120.74 | -15.22 | 121.37 | -46.78 | 115.46 | 0.7810 | 1091.0 | 303.7 | |
| 20.73 | -1.00 | 16.57 | -1.00 | -15.36 | 120.83 | -47.32 | 115.38 | 0.7869 | 809.7 | 999999 | |
| 5.18 | -1.00 | 4.18 | -1.00 | -15.19 | 120.23 | -47.92 | 114.91 | 0.7920 | 578.2 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.29 | -15.05 | 119.62 | -48.53 | 114.48 | 0.7973 | 563.0 | 431.4 | |
| 6.24 | 23.36 | 5.10 | 19.14 | -14.63 | 119.37 | -48.78 | 113.88 | 0.7982 | 682.4 | 420.7 | |
| 1.23 | -5.00 | 1.01 | -5.00 | -14.33 | 119.18 | -48.97 | 113.44 | 0.7989 | 732.3 | 999999 | |
| 2.63 | 3.25 | 2.21 | 2.72 | -15.12 | 118.45 | -49.70 | 114.08 | 0.8086 | 431.3 | 297.7 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -13.45 | 118.00 | -50.15 | 111.94 | 0.8072 | -425.0 | -487.9 | |
| 0.00 | 3.69 | 0.00 | 3.20 | -14.58 | 116.71 | -51.43 | 112.76 | 0.8228 | -614.0 | -481.3 | |
| 3.78 | 6.76 | 3.34 | 5.97 | -15.12 | 115.97 | -52.18 | 113.11 | 0.8312 | -545.8 | -537.9 | |
| 3.16 | 3.95 | 2.97 | 3.71 | -15.56 | 113.72 | -54.43 | 112.78 | 0.8520 | -391.6 | -305.4 | |
| 18.09 | 63.49 | 17.03 | 60.07 | -14.76 | 113.38 | -54.77 | 111.77 | 0.8527 | -726.1 | -34.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
