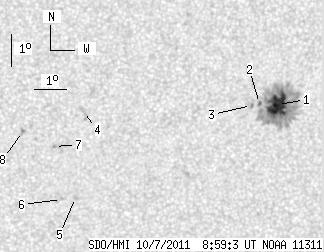

SDO HMI 2011-10-07 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.92 | 145.94 | 14.97 | 78.21 | -11.26 | 180.19 | 13.68 | 217.54 | 0.3820 | 699.5 | 344.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.52 | 133.20 | 14.22 | 71.49 | -11.18 | 180.72 | 14.21 | 218.88 | 0.3853 | 1219.6 | 439.0 | |
| 1.40 | -1.00 | 0.75 | -1.00 | -11.13 | 180.15 | 13.64 | 217.81 | 0.3790 | 890.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -11.19 | 179.90 | 13.39 | 217.21 | 0.3773 | 981.0 | 871.0 | |
| 0.00 | 3.78 | 0.00 | 1.98 | -11.26 | 174.67 | 8.17 | 204.74 | 0.3343 | -827.0 | -605.6 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -13.99 | 174.51 | 8.01 | 201.26 | 0.3743 | -730.0 | -542.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.05 | 174.08 | 7.57 | 200.15 | 0.3726 | -786.0 | -648.9 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -12.36 | 173.81 | 7.30 | 201.17 | 0.3453 | -993.0 | -760.3 | |
| 0.00 | 2.81 | 0.00 | 1.47 | -11.87 | 172.81 | 6.30 | 198.96 | 0.3321 | -987.0 | -780.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
