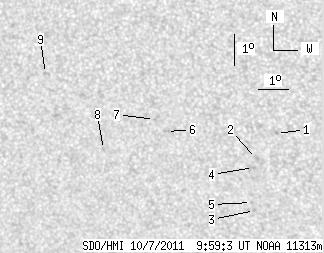

SDO HMI 2011-10-07 09:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.46 | 0.00 | 6.98 | -13.00 | 145.92 | -20.04 | 134.42 | 0.4694 | 92.3 | 36.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 09:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.68 | -12.42 | 148.52 | -17.44 | 137.33 | 0.4336 | 688.0 | 610.4 | |
| 0.00 | 2.19 | 0.00 | 1.22 | -13.24 | 147.82 | -18.14 | 137.48 | 0.4504 | 797.0 | 485.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.91 | 147.61 | -18.35 | 139.63 | 0.4716 | 753.0 | 514.6 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -13.53 | 147.70 | -18.26 | 137.74 | 0.4550 | 734.0 | 596.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.66 | 147.54 | -18.42 | 139.15 | 0.4694 | 580.0 | 462.9 | |
| 0.00 | 2.19 | 0.00 | 1.23 | -12.50 | 144.94 | -21.02 | 132.10 | 0.4740 | -739.0 | -609.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -12.13 | 144.57 | -21.39 | 131.03 | 0.4745 | -723.0 | -598.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -13.16 | 142.78 | -23.18 | 130.38 | 0.5051 | -573.0 | -449.4 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -10.85 | 141.06 | -24.90 | 124.68 | 0.5049 | -686.0 | -521.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
