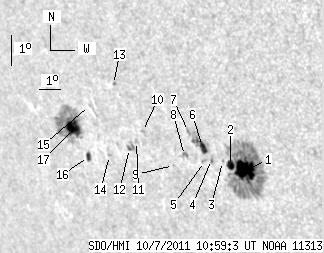

SDO HMI 2011-10-07 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.93 | 267.47 | 46.29 | 212.35 | -15.12 | 118.38 | -47.03 | 115.30 | 0.7822 | 217.4 | 168.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.33 | 158.88 | 19.88 | 119.88 | -15.38 | 121.10 | -44.31 | 116.81 | 0.7570 | 849.2 | 304.6 | |
| 5.18 | -1.00 | 3.95 | -1.00 | -15.27 | 120.52 | -44.90 | 116.38 | 0.7624 | 490.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -15.17 | 120.19 | -45.22 | 116.10 | 0.7652 | 365.0 | 266.0 | |
| 0.00 | 2.19 | 0.00 | 1.70 | -15.14 | 119.71 | -45.70 | 115.84 | 0.7699 | 654.0 | 501.2 | |
| 0.00 | 1.93 | 0.00 | 1.50 | -15.24 | 119.37 | -46.04 | 115.80 | 0.7737 | 383.0 | 416.5 | |
| 7.02 | 16.50 | 5.44 | 12.81 | -14.75 | 119.41 | -46.00 | 115.23 | 0.7713 | 698.3 | 412.7 | |
| 0.00 | 2.19 | 0.00 | 1.71 | -14.32 | 118.90 | -46.51 | 114.48 | 0.7746 | 357.0 | 347.5 | |
| 0.00 | 3.60 | 0.00 | 2.85 | -15.12 | 118.50 | -46.91 | 115.25 | 0.7818 | 425.0 | 420.1 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -15.49 | 117.88 | -47.53 | 115.42 | 0.7893 | 284.0 | 218.5 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -14.50 | 116.73 | -48.68 | 113.76 | 0.7967 | -776.0 | -629.5 | |
| 0.00 | 1.93 | 0.00 | 1.59 | -14.86 | 116.34 | -49.07 | 114.01 | 0.8017 | -664.0 | -530.0 | |
| 1.32 | 5.27 | 1.10 | 4.38 | -15.12 | 115.92 | -49.49 | 114.14 | 0.8065 | -442.5 | -529.3 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -13.10 | 115.76 | -49.66 | 111.70 | 0.8012 | 551.0 | 468.6 | |
| 0.00 | 1.32 | 0.00 | 1.13 | -15.44 | 114.85 | -50.57 | 114.08 | 0.8176 | -545.0 | -401.1 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -13.89 | 114.36 | -51.05 | 112.09 | 0.8170 | -515.0 | -453.3 | |
| 3.60 | 4.56 | 3.16 | 4.01 | -15.57 | 113.75 | -51.66 | 113.80 | 0.8279 | -381.2 | -334.5 | |
| 14.48 | 64.52 | 12.76 | 57.09 | -14.72 | 113.29 | -52.12 | 112.65 | 0.8294 | -704.6 | -91.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
